Same model may have multiple batches, images only for reference.

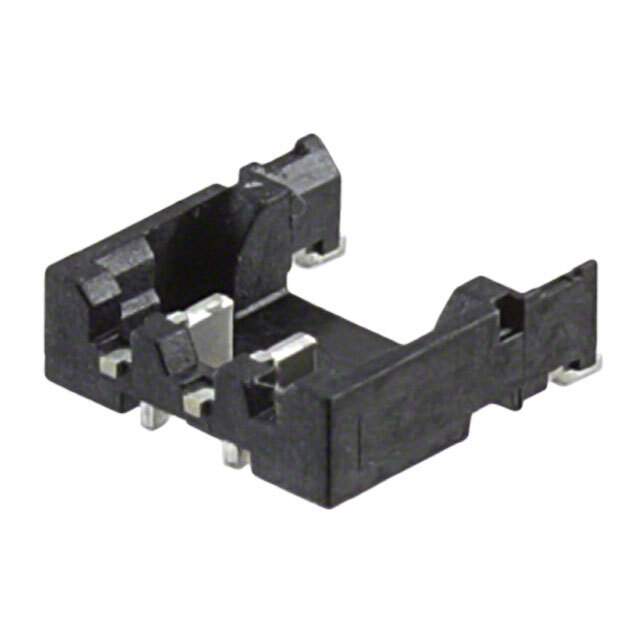

DF57H-2P-1.2V(21) Real Image
Same model may have multiple batches, images only for reference.

DF57H-2P-1.2V(21)

Part No DF57H-2P-1.2V(21)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER 1.2MM 2POS SMD
Datasheet
DF57H-2P-1.2V(21) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.047" (1.20mm)
Style Board to Cable/Wire
Shrouding Unshrouded
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Swing Lock
Insulation Height 0.055" (1.40mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39μin (1.00μm)
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP)
Features Solder Retention
Temperature Range - Operating -35°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Win Source Part Number 1033040-DF57H-2P-1.2V(21)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DF57H-2P-1.2V(21) CAD Model

Description

The Hirose Electric Co Ltd DF57H-2P-1.2V(21) is an electronic component that belongs to the connector and interconnect category.

  • Manufacturer: Hirose Electric Co Ltd
  • Category: Connector and Interconnect
  • Connector Type: Header
  • Contact Gender: Male Blade
  • Termination Style: Solder
  • Number of Positions: 2
  • Positions Loaded: All
  • Shrouded: Unshrouded
  • Fastening Type: Swing Lock
  • Contact Finish: Tin
  • Contact Finish Thickness: 39μin (1.00μm)
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Pitch-Mating: 0.047" (1.20mm)
  • Operating Temperature Range: -35°C to 85°C
  • Popularity: Medium
  • Supply and Demand Status: Balanced
