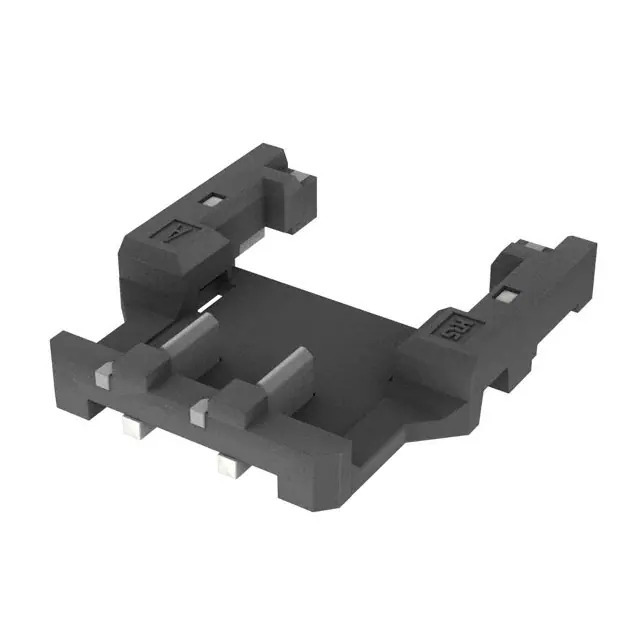

Same model may have multiple batches, images only for reference.

DF58-2P-1.2V(21)

Name: DF58-2P-1.2V(21)
Brand: Hirose Electric Co Ltd
SKU: 1365611
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF58-2P-1.2V(21)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 2POS 1.2MM / Connector Header Surface Mount 2 position 0.047" (1.20mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF58
Package	Tape & Reel
Product Status	Active
Connector Type	Header
Contact Type	Male Blade
Pitch - Mating	0.047" (1.20mm)
Number of Positions	2
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Swing Lock
Contact Length - Mating	-
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.095" (2.41mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Solder Retention
Temperature Range - Operating	-55°C ~ 85°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	-
Voltage Rating	100VDC
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	DF58
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1365611-DF58-2P-1.2V(21)
Ultra Librarian 3D Model	Ultra Librarian DF58-2P-1.2V(21) CAD Model

Alternative Products

Description

The DF58-2P-1.2V(21) is a header connector from Hirose Electric Co Ltd's DF58 series.

Mounting Type: Surface Mount
Pitch: 0.047" (1.20mm)
Positions: 2
Rows: 1
Shrouding: Unshrouded
Temperature Range: -55°C to 85°C
Packaging: Tape & Reel
Product Status: Active
Features: Solder Retention
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Voltage Rating: 100VDC
