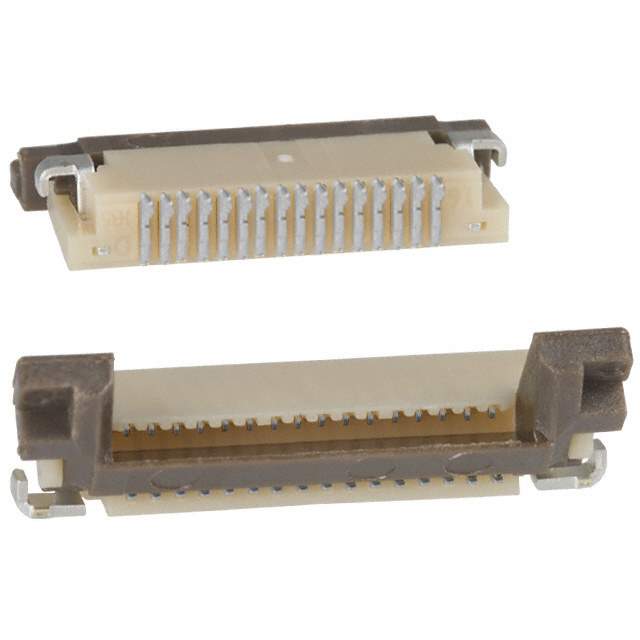

The FH12A-16S-0.5SH is a Flat Flexible Cable (FFC) connector manufactured by Hirose Electric Co., Ltd. This connector is designed to provide a reliable and space-saving connection for FFC/FPC cables with a 0.5mm pitch. It is commonly used in a variety of electronic devices where compact size and secure connections are essential.

Applications:

• Notebook PCs
• LCD Televisions
• Digital Cameras
• Printers
• Mobile Phones

Features:

• 0.5mm Pitch: Enables high-density mounting and compact designs.
• Surface Mount: Facilitates automated assembly and reduces manufacturing costs.
• Secure Locking Mechanism: Ensures reliable connection and prevents accidental disconnections.
• Halogen-Free: Environmentally friendly and compliant with RoHS regulations.
• Low Profile Design: Saves space and allows for thinner device profiles.

Benefits:

• Space Savings: The compact design allows for more efficient use of PCB space.
• Reliable Connection: The secure locking mechanism ensures stable and consistent performance.
• Simplified Assembly: Surface mount design reduces assembly time and costs.
• Environmentally Friendly: Halogen-free materials contribute to a greener product.

Additional Details:

The FH12A-16S-0.5SH connector is designed for use with 16-position FFC/FPC cables. The actuator provides a tactile click to confirm proper cable insertion. The high contact force ensures a reliable electrical connection. The connector is made with durable materials to withstand repeated insertion and removal cycles. The Hirose FH series connectors are known for their quality and reliability in various electronic applications.
