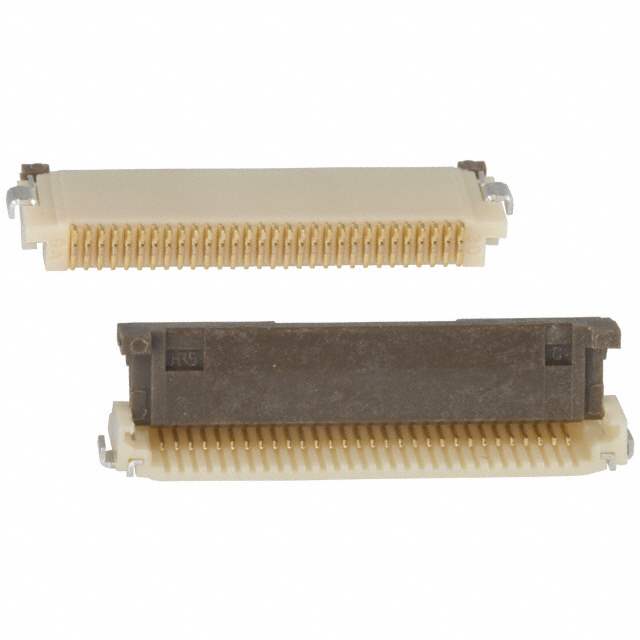

FH12S-30S-0.5SH(55)

Name: FH12S-30S-0.5SH(55)
Brand: Hirose Electric Co Ltd
SKU: 130533
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FH12S-30S-0.5SH(55)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC BOTTOM 30POS 0.50MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Packaging	Reel - TR
Status	Active
Flat Flex Type	FFC, FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	30
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.094" (2.40mm)
Locking Feature	Flip Lock
Cable End Type	Straight
Contact Finish	Gold
Housing Material	Polyamide (PA), Nylon
Actuator Material	Polyphenylene Sulfide (PPS)
Features	Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-40°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.5A
Housing Color	Beige
Actuator Color	Brown
Mating Cycles	20
Win Source Part Number	001184-FH12S-30S-0.5SH(55)
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	2k pcs
Ultra Librarian 3D Model	Ultra Librarian FH12S-30S-0.5SH(55) CAD Model

Description

The 001184-FH12S-30S-0.5SH(55) is a 30-position FFC/FPC connector from Hirose Electric Co Ltd. It is a surface-mount, right-angle connector with a pitch of 0.50mm.

Locking Mechanism: Flip-Lock
Cable End Type: Straight
Height Above Board: 2.40mm
Housing Material: Polyamide (PA), Nylon
Contact Material: Phosphor Bronze
Contact Finish: Gold
Voltage Rating: 50V
Current Rating: 0.5A
Flammability Rating: UL94 V-0
Temperature Range: -40°C to 85°C
Standard Package: 2,000
Mating Cycle: 20
