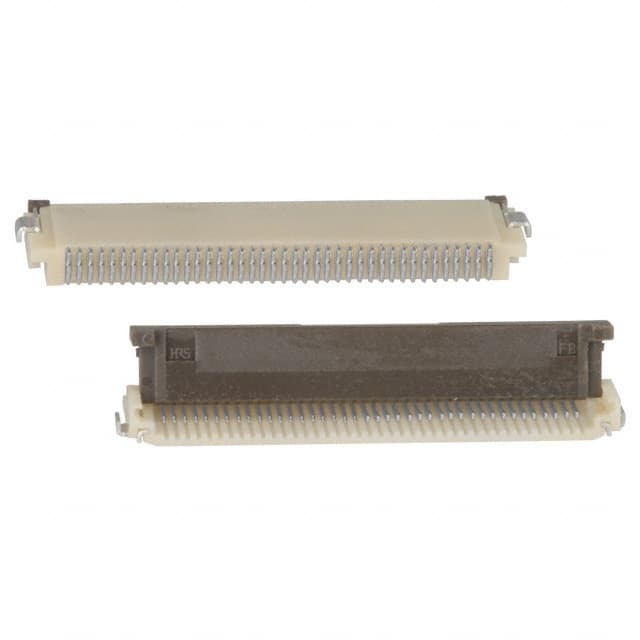

FH12S-40S-0.5SH
Same model may have multiple batches, images only for reference.

FH12S-40S-0.5SH

Part No FH12S-40S-0.5SH
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 40POS 0.5MM R/A / 40 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
FH12S-40S-0.5SH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series FH12
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 40
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.094" (2.40mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin-Lead
Housing Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Brown
Mating Cycles 20
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 849523-FH12S-40S-0.5SH
Ultra Librarian 3D Model Ultra Librarian FH12S-40S-0.5SH CAD Model

Description

The FH12 series from Hirose Electric Co Ltd is a versatile and reliable solution for your connector needs. This particular product, with the part number 849523-FH12S-40S-0.5SH, falls under the category of FFC, FPC (Flat Flexible) Connectors.

  • Positions: 40
  • Pitch: 0.020" (0.50mm)
  • Force Type: Zero insertion force (ZIF)
  • Termination: Solder
  • Contact Finish: Tin-lead
  • Voltage Rating: 50V
  • Height Above Board: 0.094" (2.40mm)
  • Cable Type: FFC and FPC flat flex cables (0.30mm thickness)
  • Locking Feature: Flip lock
  • Housing Material: Polyamide (PA) and nylon
  • Temperature Range: -40°C to 85°C
