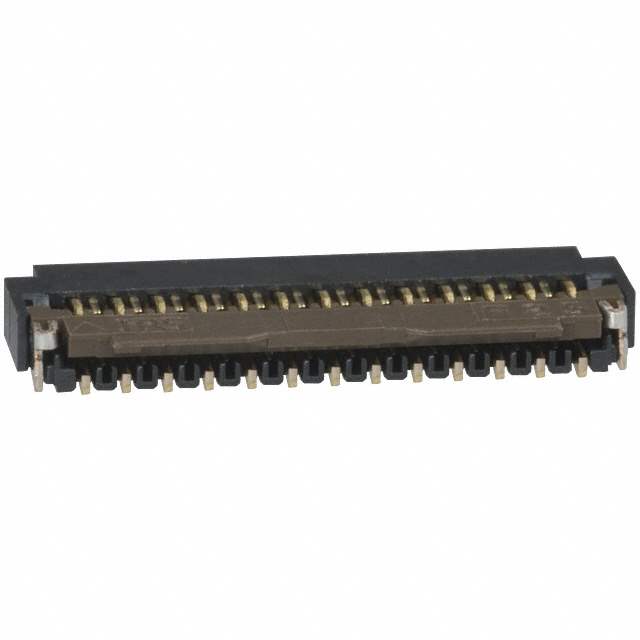

FH26-25S-0.3SHW(10) Real Image
Same model may have multiple batches, images only for reference.

FH26-25S-0.3SHW(10)

Part No FH26-25S-0.3SHW(10)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 25POS 0.30MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 25
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A
Housing Color Black
Actuator Color Brown
Mating Cycles 10
Win Source Part Number 204186-FH26-25S-0.3SHW(10)
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian FH26-25S-0.3SHW(10) CAD Model

Description

The FH26-25S-0.3SHW(10) connector is a flat flex type FPC connector with 25 positions and a pitch of 0.012 inches (0.30mm).

  • Features: Zero insertion force (ZIF) and flip lock locking feature
  • Connector/Contact Type: Contacts, bottom
  • Cable End Type: Tapered
  • Housing Material: Liquid crystal polymer (LCP)
  • Actuator Material: Polyamide (PA), nylon
  • Material Flammability Rating: UL94 V-0
  • Housing Color: Black
  • Voltage Rating: 30V
  • Current Rating: 0.2A
  • Manufacturer: Hirose Electric Co Ltd
  • Packaging: Reel
  • Supply and Demand: Balanced
  • Application Field: Industrial
  • Standard Package: 5000 units
