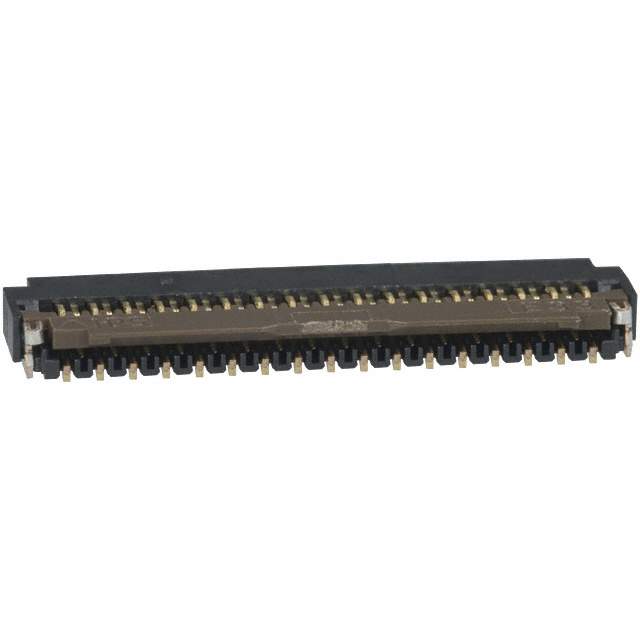

FH26W-33S-0.3SHW(05)

Name: FH26W-33S-0.3SHW(05)
Brand: Hirose Electric Co Ltd
SKU: 1059123
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	FH26W-33S-0.3SHW(05)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC BOTTOM 33POS 0.30MM R/A / 33 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet	FH26W-33S-0.3SHW(05) Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Hirose Electric Co Ltd
Series	FH26
Package	Tape & Reel (TR)
Product Status	Obsolete
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	33
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.039" (1.00mm)
Locking Feature	Flip Lock
Cable End Type	Tapered
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Features	Zero Insertion Force (ZIF)
Voltage Rating	30V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 HB
Current Rating (Amps)	0.2A
Housing Color	Black
Actuator Color	Brown
Mating Cycles	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	580-2409-3-05
Standard Package	5,000
Win Source Part Number	1059123-FH26W-33S-0.3SHW(05)
Ultra Librarian 3D Model	Ultra Librarian FH26W-33S-0.3SHW(05) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd 1059123-FH26W-33S-0.3SHW(05) is a flat flexible connector with 33 positions and a pitch of 0.012 inches.

Product: 1059123-FH26W-33S-0.3SHW(05)
Manufacturer: Hirose Electric Co Ltd
Type: Flat flexible connector
Positions: 33
Pitch: 0.012 inches
Features: Zero insertion force (ZIF) and a flip lock
Applications: Suitable for use in various applications, including industrial and automotive.
