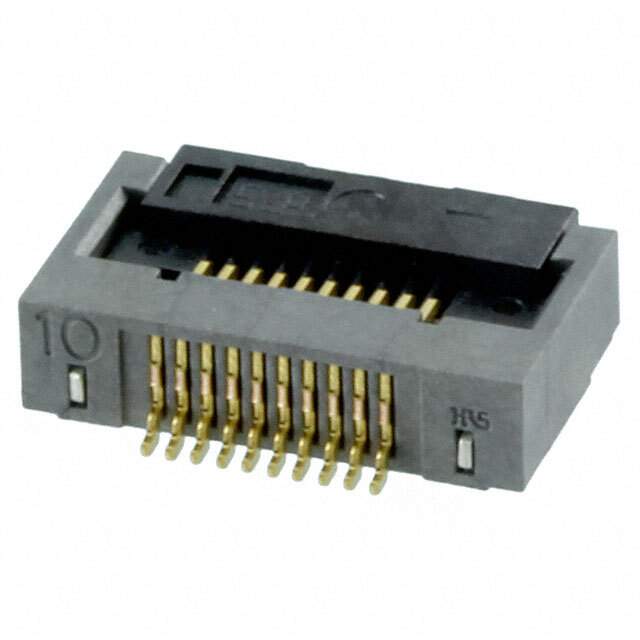

Same model may have multiple batches, images only for reference.

FH28-10S-0.5SH(98)

Name: FH28-10S-0.5SH(98)
Brand: Hirose Electric Co Ltd
SKU: 453814
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	FH28-10S-0.5SH(98)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC BOTTOM 10POS 0.50MM R/A
Datasheet	FH28-10S-0.5SH(98) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Packaging	Reel - TR
Status	Active
Flat Flex Type	FFC, FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	10
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.100" (2.54mm)
Locking Feature	Rotary Lock
Cable End Type	Tabbed
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-40°C to 105°C
Material Flammability Rating	UL94 V-0
Current Rating	0.5A
Housing Color	Gray
Actuator Color	Black
Mating Cycles	20
Win Source Part Number	1038763-FH28-10S-0.5SH(98)
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	500
Ultra Librarian 3D Model	Ultra Librarian FH28-10S-0.5SH(98) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd FH28-10S-0.5SH(98) is a connector that comes in a reel - TR packaging.

Positions: 10
Pitch: 0.020" (0.50mm)
Feature: Solder Retention
Feature: Zero Insertion Force (ZIF)
Voltage Rating: 50V
Current Rating: 0.5A
Height Above Board: 0.100" (2.54mm)
Type: FFC, FPC flat flex
Feature: Rotary Lock
Housing Material: Liquid Crystal Polymer (LCP), Halogen-Free
