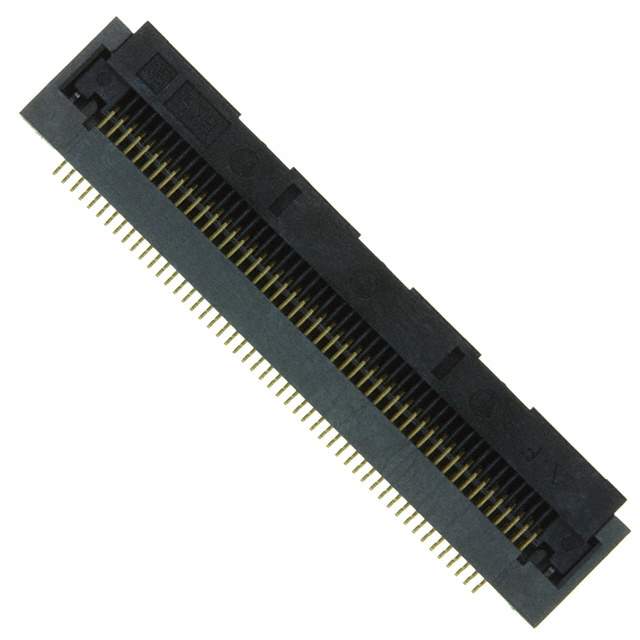

FH28D-50S-0.5SH(98) Real Image
Same model may have multiple batches, images only for reference.

FH28D-50S-0.5SH(98)

Part No FH28D-50S-0.5SH(98)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Datasheet
FH28D-50S-0.5SH(98) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH28
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 50
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.100" (2.54mm)
Locking Feature Rotary Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Gray
Actuator Color Black
Mating Cycles 20
Base Product Number FH28
Other Names *FH28D-50S-0.5SH(98),*FH28D-50S-0.5SH(98)CT,-FH28D-50S-0.5SH(98)CT,-FH28D-50S-0.5SH(98)DKR,H124629TR,*FH28D-50S-0.5SH(98)DKR,-FH28D-50S-0.5SH(98),-FH28D-50S-0.5SH(98),586-1808-1-98,H124629DKR,FH28D-50S-0.5SH(98),*FH28D-50S-0.5SH(98),H124629CT
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1294104-FH28D-50S-0.5SH(98)
Ultra Librarian 3D Model Ultra Librarian FH28D-50S-0.5SH(98) CAD Model

Description

The Hirose Electric Co Ltd FH28D-50S-0.5SH(98) is a connector that is commonly used in electronic circuits.

  • Positions: 50
  • Pitch: 0.020" (0.50mm)
  • Features: Solder Retention, Zero Insertion Force (ZIF)
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 50V
  • Height Above Board: 0.100" (2.54mm)
  • Flat Flex Type: FFC, FPC
  • Connector/Contact Type: Contacts, Bottom
  • FFC, FCB Thickness: 0.30mm
  • Locking Feature: Rotary Lock
  • Cable End Type: Tabbed
  • Housing Material: Liquid Crystal Polymer (LCP), Halogen Free
  • Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free
  • Material Flammability Rating: UL94 V-0
  • Housing Color: Gray
  • Actuator Color: Black
  • Standard Package: 500
  • Mating Cycle: 20
  • Mounting Type: Surface Mount, Right Angle
  • Operating Temperature Range: -40°C ~ 105°C
