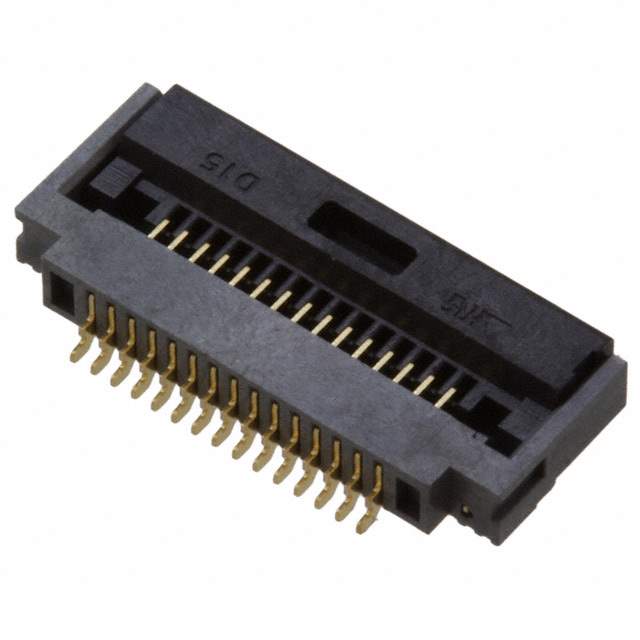

FH52-15S-0.5SH Real Image
Same model may have multiple batches, images only for reference.

FH52-15S-0.5SH

Part No FH52-15S-0.5SH
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 15POS 0.50MM R/A / 15 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH52
Package Tape & Reel (TR)
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 15
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 1.25µin (0.03µm)
Housing Color Gray
Actuator Color Black
Mating Cycles 20
Base Product Number FH52
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 580-3302-5-00
Standard Package 3,000
Win Source Part Number 1059129-FH52-15S-0.5SH
Ultra Librarian 3D Model Ultra Librarian FH52-15S-0.5SH CAD Model

Description

The Hirose Electric Co Ltd FH52-15S-0.5SH is a connector that belongs to the FH52 series.

  • Product: FH52-15S-0.5SH
  • Manufacturer: Hirose Electric Co Ltd
  • Series: FH52
  • Package: Tape and reel
  • Positions: 15
  • Pitch: 0.020 inches (0.50mm)
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 1.25μin (0.03μm)
  • Contact Material: Phosphor Bronze
  • Voltage Rating: -
  • Height Above Board: 0.079 inches (2.00mm)
  • Flat Flex Type: FFC, FPC
  • Connector/Contact Type: Contacts, Bottom
  • FFC, FCB Thickness: 0.30mm
  • Locking Feature: Flip lock
  • Housing and Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free
  • Material Flammability Rating: UL94 V-0
  • Housing Color: Gray
  • Standard Package: 3,000
  • Mating Cycles: 20
  • Mounting Type: Surface mount, right-angle mounting
  • Temperature Range: -40°C to 105°C
  • Actuator Color: Black
  • Also known as: FH28-15S-0.5SH(10), FH19C-15S-0.5SH(99), FH41-15S-0.5SH(99), 505110-1592, XF3M-1515-1B, and 52559-1552
  • MSL Level: 1, which is unlimited
  • HTSUS: 8536.69.4051
