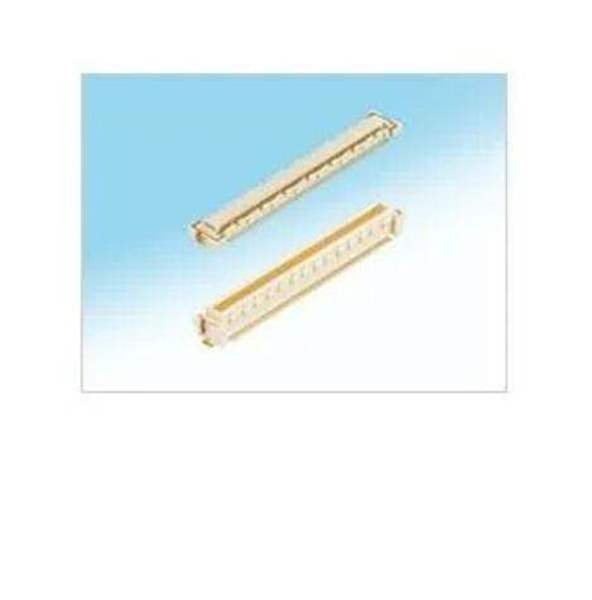

FX10B-144P-SV1(91) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FX10B-144P-SV1(91)

Part No FX10B-144P-SV1(91)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular - Board to Board Connectors
Description CONN HDR 144POS SMD GOLD
Datasheet
FX10B-144P-SV1(91) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Part Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 144
Pitch 0.020" (0.50mm)
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Height Above Board 0.177" (4.50mm)
Win Source Part Number WS1305804-FX10B-144P-SV1(91)
Ultra Librarian 3D Model Ultra Librarian FX10B-144P-SV1(91) CAD Model

Description

144 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
