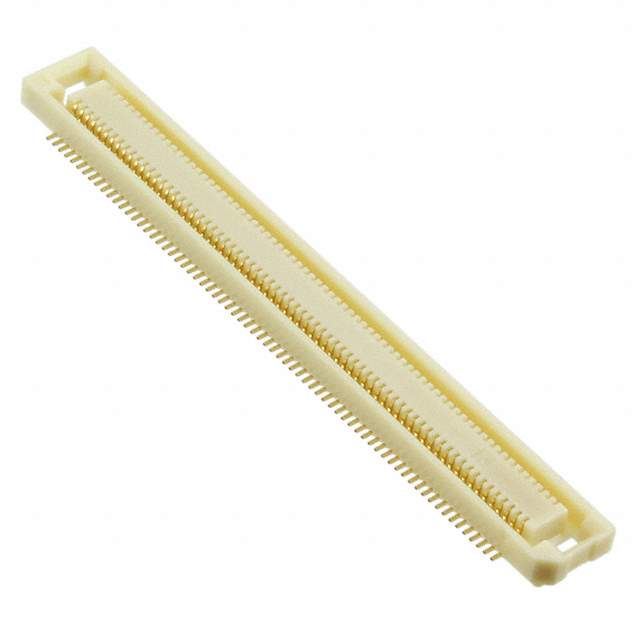

FX8-140S-SV(22) Real Image
Same model may have multiple batches, images only for reference.

FX8-140S-SV(22)

Part No FX8-140S-SV(22)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 140POS SMD GOLD / 140 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet
FX8-140S-SV(22) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Connector Type Receptacle, Center Strip Contacts
Number of Positions 140
Pitch 0.024" (0.60mm)
Number of Rows 2
Mounting Surface Mount
Features Board Guide
Contact Finish Gold
Mated Stacking Heights 3mm, 4mm
Height Above Board 0.089" (2.26mm)
Base Product Number FX8
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 578-0207-1-22
Standard Package 1,000
Win Source Part Number 1332881-FX8-140S-SV(22)
Ultra Librarian 3D Model Ultra Librarian FX8-140S-SV(22) CAD Model

Description

The Hirose Electric Co Ltd FX8-140S-SV(22) is a 140-position array connector with center strip contacts.

  • Positions: 140
  • Contacts: Center Strip
  • Pitch: 0.024" (0.60mm)
  • Features: Board Guide
  • Mounting: Surface Mountable
  • Height Above Board: 0.089" (2.26mm)
  • Applications: Connectors and Interconnects
  • Packaging: Reel
  • Quantity: 1,000
  • RoHS Compliant: Yes
  • Availability: Open Market
