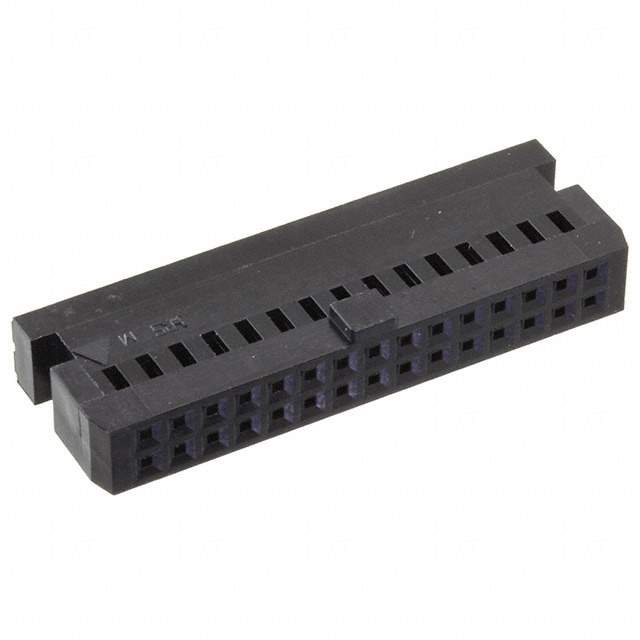

Same model may have multiple batches, images only for reference.

HIF3BA-30D-2.54C

Name: HIF3BA-30D-2.54C
Brand: Hirose Electric Co Ltd
SKU: 1333085
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	HIF3BA-30D-2.54C
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 30POS 2.54MM / 30 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
Datasheet	HIF3BA-30D-2.54C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer	Hirose Electric Co Ltd
Packaging	Bulk
Product Status	Obsolete
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	30
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
Features	Polarizing Key
Note	Contacts Not Included
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	HIF3BA-30D-2.54C,-HIF3BA-30D-2.54C,HIF3BA-30D-2.54C-ND,HIF3BA-30D-2.54C-ND,610-1045-0-00,H123733
Standard Package	50
Win Source Part Number	1333085-HIF3BA-30D-2.54C
Ultra Librarian 3D Model	Ultra Librarian HIF3BA-30D-2.54C CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd 1333085-HIF3BA-30D-2.54C is a rectangular connector housing that has 30 positions and a pitch of 0.100" (2.54mm).

Connector Type: Receptacle
Contact Type: Female Socket
Rows: Two
Row Spacing: 0.100" (2.54mm)
Key: Polarizing Key
Contacts Included: No
Status: Obsolete
