Same model may have multiple batches, images only for reference.

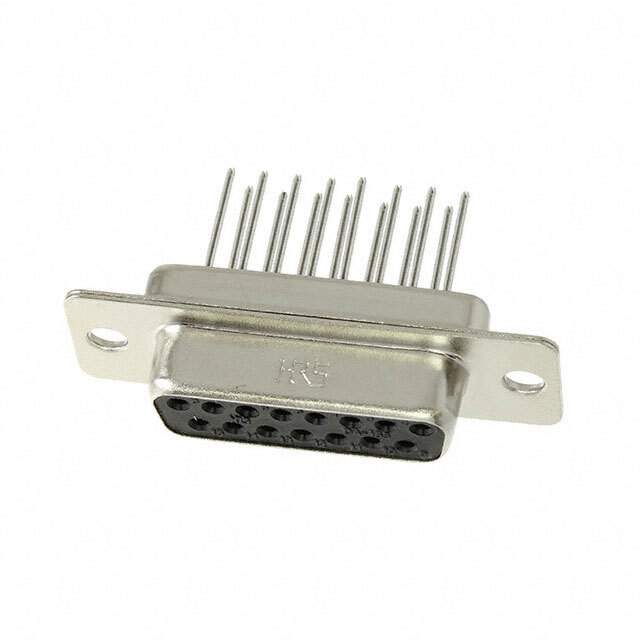

SDAG-15S(55) Real Image
Same model may have multiple batches, images only for reference.

SDAG-15S(55)

Part No SDAG-15S(55)
Manufacturer Hirose Electric Co Ltd
Catalog D - SUB, D - SHAPED connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Hirose Electric Co Ltd
Series SD
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Voltage Rating 350V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Base Product Number SDAG
Other Names 211-0550-1-55,H122915,*SDAG-15S(55),*SDAG-15S(55),-SDAG-15S(55)
Standard Package 90
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294117-SDAG-15S(55)
Ultra Librarian 3D Model Ultra Librarian SDAG-15S(55) CAD Model

Description

The Hirose Electric Co Ltd SDAG-15S(55) is a D-Sub connector designed for use in various applications.

  • Positions: 15
  • Contact Type: Female Sockets
  • Color: Black
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin
  • Package: Tray
  • RoHS: Compliant
  • Mounting: Panel Mount and Through-Hole
