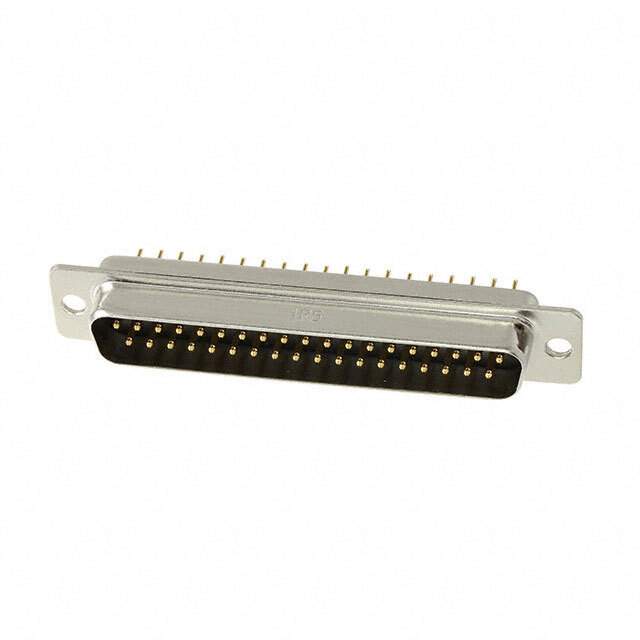

Same model may have multiple batches, images only for reference.

SDCB-37P(55)

Name: SDCB-37P(55)
Brand: Hirose Electric Co Ltd
SKU: 1294121
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SDCB-37P(55)
Manufacturer	Hirose Electric Co Ltd
Catalog	D - SUB, D - SHAPED connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>D-Sub Connectors
Mfr	Hirose Electric Co Ltd
Series	SD
Package	Tray
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Number of Positions	37
Number of Rows	2
Mounting Type	Panel Mount, Through Hole
Shell Size, Connector Layout	4 (DC, C)
Contact Type	Signal
Flange Feature	Housing/Shell (Unthreaded)
Termination	Solder
Shell Material, Finish	Steel, Nickel Plated
Contact Finish	Gold
Contact Finish Thickness	8.00µin (0.203µm)
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	3A
Voltage Rating	350V
Color	Black
Dielectric Material	Polybutylene Terephthalate (PBT)
Contact Material	Phosphor Bronze
Base Product Number	SDCB
Other Names	SDCB-37P(55),211-0253-6-55,SDCB-37P(55),-SDCB-37P(55),H122921
Standard Package	20
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1294121-SDCB-37P(55)
Ultra Librarian 3D Model	Ultra Librarian SDCB-37P(55) CAD Model

Description

The SDCB-37P(55) D-Sub connector from Hirose Electric Co Ltd is a male plug signal contact type connector with 37 positions.

Positions: 37
Color: Black
Package/Case: Radial
Contact Finish: Gold
Contact Material: Phosphor bronze
Connector Style: D-Sub
Voltage Rating: 350V
Mounting: Panel mounted
Mounting Type: Through-hole
ECCN: EAR99
REACH: Unaffected
Current Rating: 3A
