Same model may have multiple batches, images only for reference.

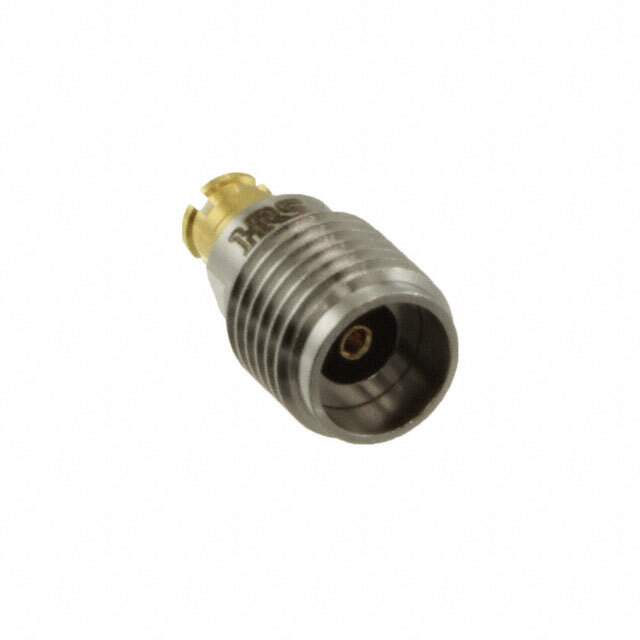

SMPJ-HKJ Real Image
Same model may have multiple batches, images only for reference.

SMPJ-HKJ

Part No SMPJ-HKJ
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF) - Adapters
Datasheet
SMPJ-HKJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF) - Adapters
Mfr Hirose Electric Co Ltd
Series SMP
Package Bulk
Adapter Type Jack to Jack
Conversion Type Between Series
Adapter Series SMP to 2.92mm
Center Gender Female to Female
Convert From (Adapter End) SMP Jack, Female Socket
Convert To (Adapter End) 2.92mm (OS-2.9) Jack, Female Socket
Impedance 50Ohm
Style Straight
Mounting Type Free Hanging (In-Line)
Fastening Type Snap-On, Threaded
Frequency - Max 40 GHz
Center Contact Plating Gold
Body Material Beryllium Copper
Body Finish Gold
Center Contact Material Beryllium Copper
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles 500
Insertion Loss 0.50dB
Temperature Range - Operating -55°C ~ 125°C
Base Product Number SMPJ
Other Names H126325,311-0013-0-00
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1294148-SMPJ-HKJ
Ultra Librarian 3D Model Ultra Librarian SMPJ-HKJ CAD Model

Description

The SMPJ-HKJ is a straight jack to jack adapter designed for use in coaxial connectors.

  • Adapter Type: Straight jack to jack
  • Application: Coaxial connectors
  • Fastening Type: Snap-on and threaded
  • Maximum Frequency: 40 GHz
  • Impedance: 50Ohm
  • Body Material: Beryllium copper
  • Insertion Loss: 0.50dB
  • Body Finish: Gold
  • Center Contact Material: Beryllium copper
  • Center Contact Plating: Gold
  • Mating Cycle: 500
  • Conversion Type: Between series
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99 compliant
  • Packaging: Bulk
  • Standard Package: 20
