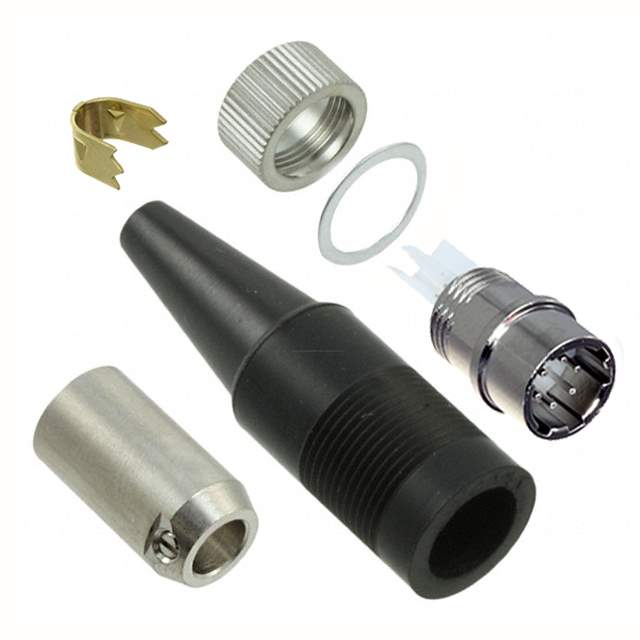

SR30-10PF-6P(71) Real Image
Same model may have multiple batches, images only for reference.

SR30-10PF-6P(71)

Part No SR30-10PF-6P(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Hirose Electric Co Ltd
Series SR30
Package Bulk
Connector Type Plug, Male Pins
Number of Positions 6
Shell Size - Insert 10
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Threaded
Orientation Keyed
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Silver
Color Black, Silver
Features Backshell, Clamp, Coupling Nut, Strain Relief
Shielding Unshielded
Current Rating (Amps) 1A
Voltage Rating 100VAC, 140VDC
Temperature Range - Operating -10°C ~ 60°C
Backshell Material, Plating Brass, Nickel
Contact Material Brass
Contact Finish Thickness - Mating 118.1µin (3.00µm)
Insert Material Polyacetal
Applications Radio
Base Product Number SR30
Other Names SR30-10PF-6P(71),103-0319-0-71,1030319071,H126298
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1294211-SR30-10PF-6P(71)
Ultra Librarian 3D Model Ultra Librarian SR30-10PF-6P(71) CAD Model

Description

The SR30 10PF 6P(71) Circular Connector is a high-quality connector that features a plug with male pins and a solder cup termination.

  • Connector Type: Plug with Male Pins
  • Termination: Solder Cup
  • Fastening Type: Threaded
  • Shell Size: 10
  • Color: Black and Silver
  • Features: Backshell, Clamp, Coupling Nut, and Strain Relief
  • Contact Material: Brass
  • Voltage Rating: 100VAC and 140VDC
  • Shielding: Unshielded
  • Material Flammability Rating: -
  • Applications: Radio
  • Temperature Range: -10°C to 60°C
  • Shell Material: Zinc Alloy with a Nickel Finish
  • Insert Material: Polyacetal
  • Mounting Type: Free Hanging (In-Line)
  • Packaging: Bulk
