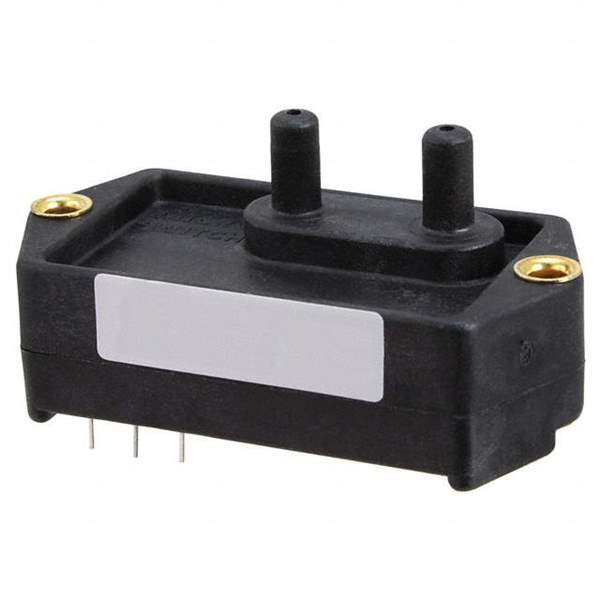

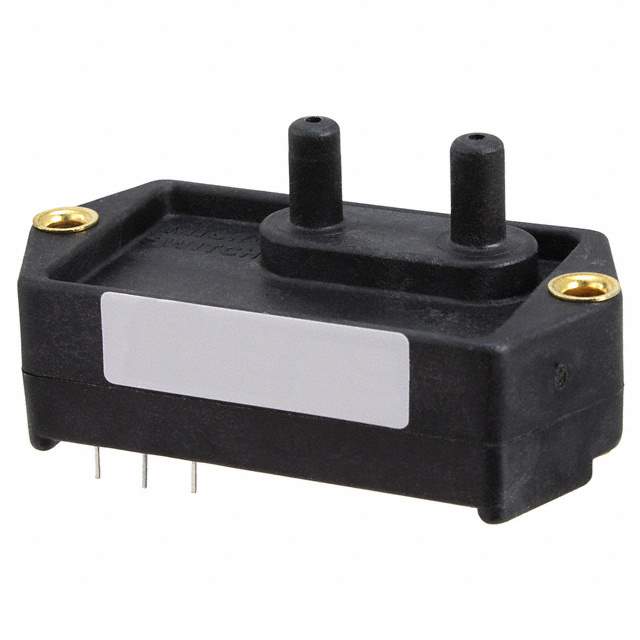

142PC01D Real Image
Same model may have multiple batches, images only for reference.

142PC01D

Part No 142PC01D
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR GAUGE 1 PSI / Pressure Sensor 1PSI (6.89kPa) Differential Male - 0.2" (5mm) Tube, Dual 1 V ~ 6 V 3-SIP Module
Datasheet
142PC01D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series 140PC
Package Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure 1PSI (6.89kPa)
Output Type Analog Voltage
Output 1 V ~ 6 V
Accuracy ±0.75%
Voltage - Supply 7V ~ 16V
Port Size Male - 0.2" (5mm) Tube, Dual
Port Style Barbless
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 20PSI (137.9kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 3-SIP Module
Base Product Number 142PC01
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Names 480-3999,142PC01D-ND
Standard Package 10
Win Source Part Number 1031409-142PC01D
Ultra Librarian 3D Model Ultra Librarian 142PC01D CAD Model

Description

The Honeywell 1031409-142PC01D is a differential pressure sensor that features amplified output and temperature compensation.

  • Output: amplified output
  • Compensation: temperature compensation
  • Package: bulk
  • Mounting: board mount
  • Standard Package: 10
  • Output Type: analog voltage
  • Output Range: 1 V to 6 V
  • Accuracy: ±0.75%
  • Pressure: 1 PSI
  • Port Size: male, 0.2-inch tube
  • Port Style: barbless, dual port
  • Maximum Pressure: 20 PSI
  • Voltage Supply: 7V to 16V
  • Temperature Range: -40°C to 85°C
