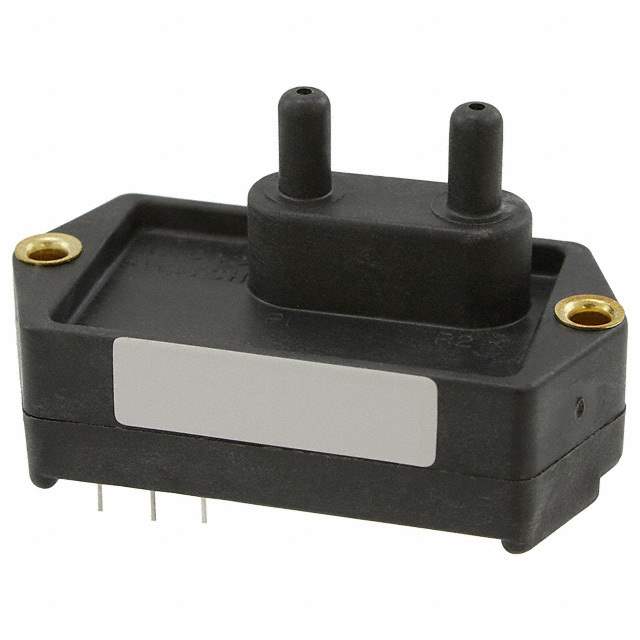

163PC01D75 Real Image
Same model may have multiple batches, images only for reference.

163PC01D75

Part No 163PC01D75
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRESS DIFF 2.5" H2O 3SIP / Pressure Sensor ±0.09PSI (±0.62kPa) Differential Male - 0.2" (5mm) Tube, Dual 3.5 V ~ 8.5 V 3-SIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure ±0.09PSI (±0.62kPa)
Output Type Analog Voltage
Output 3.5 V ~ 8.5 V
Accuracy ±2%
Voltage - Supply 6V ~ 16V
Port Size Male - 0.2" (5mm) Tube, Dual
Port Style Barbless
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±5PSI (±34.47kPa)
Temperature Range - Operating -40°C ~ 85°C
Case / Package 3-SIP Module
Base Product Number 163PC01
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number 2266-163PC01D75,480-4020,163PC01D75-ND
Standard Package 10
Win Source Part Number 1336485-163PC01D75
Ultra Librarian 3D Model Ultra Librarian 163PC01D75 CAD Model

Description

The Honeywell Pressure Sensor is an electronic component used in sensors and transducers.

  • Pressure Type: Differential.
  • Operating Pressure: ±0.09PSI (±0.62kPa).
  • Port Size: Male - 0.2" (5mm) tube, dual.
  • Port Style: Barbless.
  • Voltage - Supply: 6V ~ 16V.
  • Temperature Range - Operating: -40°C ~ 85°C.
  • RoHS Compliant: Yes.
  • Manufacturer: Honeywell Sensing and Productivity Solutions.
