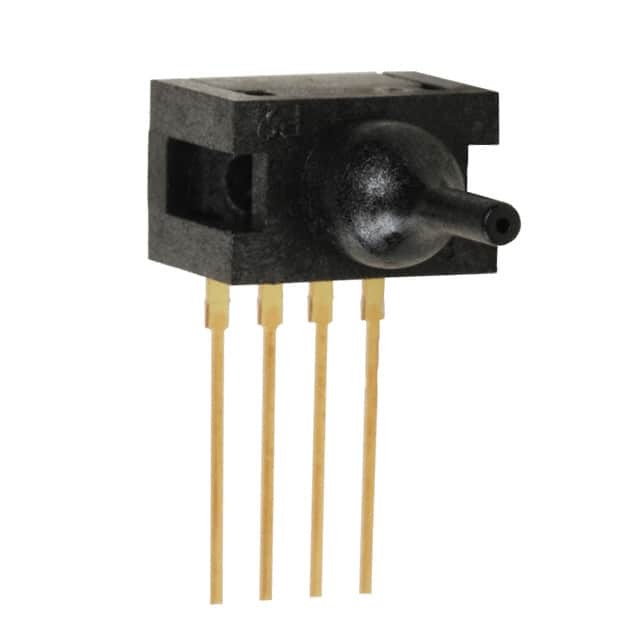

26PCCFJ6G
Same model may have multiple batches, images only for reference.

26PCCFJ6G

Part No 26PCCFJ6G
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 15PSIC 0.07" 0.1V
Datasheet
26PCCFJ6G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series 26PC
Package Bulk
Product Status Active
Applications Board Mount
Pressure Type Compound
Operating Pressure ±15PSI (±103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV (10V)
Accuracy ±0.5%
Voltage - Supply 2.5V ~ 16V
Port Size Male - 0.07" (1.78mm) Tube
Port Style Needle
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±45PSI (±310.26kPa)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 4-SIP Module
Base Product Number 26PCCFJ
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 906106-26PCCFJ6G
Ultra Librarian 3D Model Ultra Librarian 26PCCFJ6G CAD Model

Description

The 906106-26PCCFJ6G is a pressure sensor from Honeywell's 26PC series.

  • Termination Style: PC pin
  • Output Type: Temperature-compensated wheatstone bridge
  • Application: Board mount
  • Standard Package: 25 pieces
  • Supply Voltage: 2.5V to 16V
  • Output Range: 0mV to 100mV (10V)
  • Accuracy: ±0.5%
  • Pressure Range: ±15PSI (±103.42kPa)
  • Mounting Type: Through-hole
  • Package: 4-SIP module
  • Product Status: Active
