89165-01

Part No 89165-01
Manufacturer Honeywell
Catalog Keylock Switches

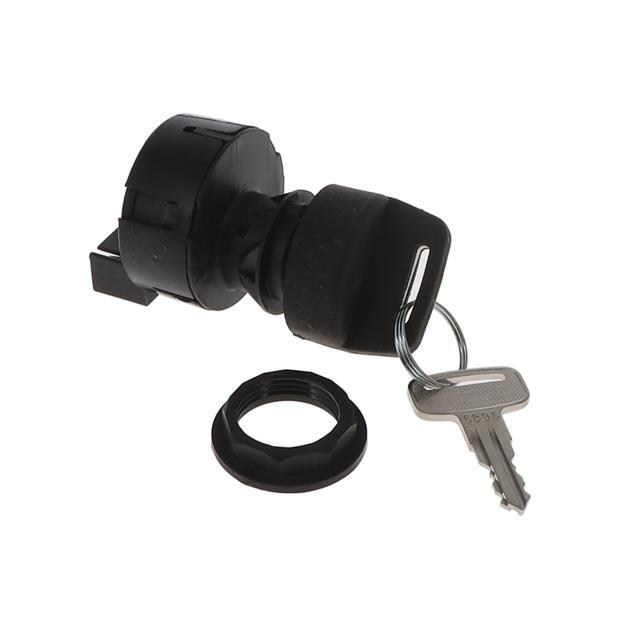

Description SWITCH KEYLOCK 3POS SPDT 20A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Circuit SPDT
Number of Positions 3
Switch Function Off-On-Mom
Contact Timing Not Specified
Current Rating (Amps) 20A (DC)
Voltage Rating - DC 12 V
Actuator Type Flat Key
Key Removable Positions Left
Angle of Throw 45°
Contact Material Brass
Contact Finish Tin
Mounting Type Panel Mount
Termination Style Connector
Panel Cutout Dimensions Circular - 22.35mm Dia
Temperature Range - Operating -40°C ~ 85°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1554895-89165-01
Ultra Librarian 3D Model Ultra Librarian 89165-01 CAD Model

Description
