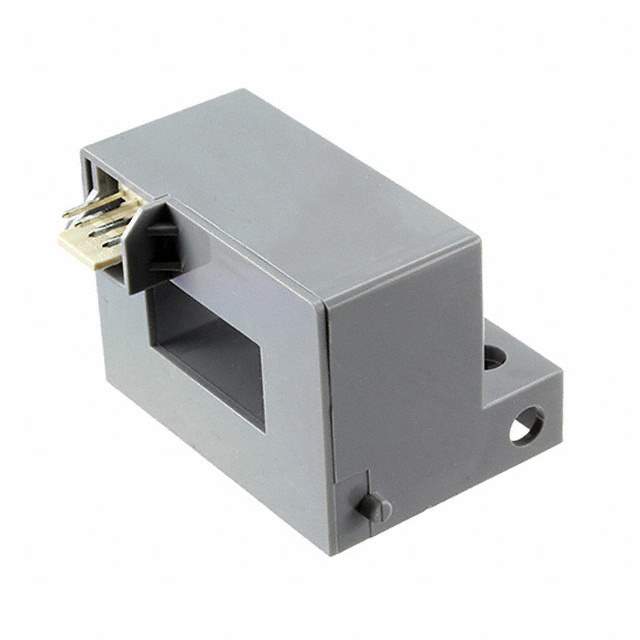

CSCA0200A000B15B01 Real Image
Same model may have multiple batches, images only for reference.

CSCA0200A000B15B01

Part No CSCA0200A000B15B01
Manufacturer Honeywell
Catalog Current Transducers
Description SENSOR CURRENT HALL 200A AC/DC / Current Sensor 200A 1 Channel Hall Effect, Open Loop Bidirectional Module
Datasheet
CSCA0200A000B15B01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Bulk
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 200A
Number of Channels 1
Output Ratiometric, Voltage
Frequency DC ~ 50kHz
Linearity ±1%
Accuracy ±2%
Voltage - Supply ±15V
Response Time 3µs
Current - Supply (Max) 17mA
Temperature Range - Operating -10°C ~ 80°C
Polarization Bidirectional
Mounting Chassis Mount
Case / Package Module
Base Product Number CSCA0200
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Other Part Number CSCA0200A000B15B01-ND,480-5969
Standard Package 25
Win Source Part Number 1336532-CSCA0200A000B15B01
Ultra Librarian 3D Model Ultra Librarian CSCA0200A000B15B01 CAD Model

Description

The Honeywell Sensing and Productivity Solutions 1336532-CSCA0200A000B15B01 is a current sensor that operates @ a frequency of DC ~ 50kHz.

  • Frequency: DC ~ 50kHz
  • Current-Sensing: 200A
  • Sensitivity: ±1%
  • Accuracy: ±2%
  • Voltage Supply: ±15V
  • Response Time: 3µs
  • Mounting Type: chassis mount
  • Number of Channels: 1
  • Output: ratiometric, voltage
  • Operating Temperature: -10°C ~ 80°C
