Same model may have multiple batches, images only for reference.

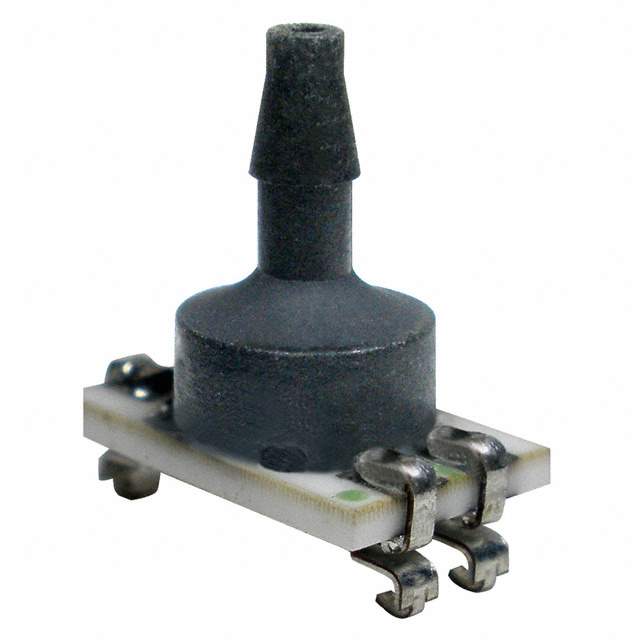

NBPMANN150PGUNV Real Image
Same model may have multiple batches, images only for reference.

NBPMANN150PGUNV

Part No NBPMANN150PGUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 150 PSIG UNAMPLIFIED SMD / Pressure Sensor 0psi to 150psi Gage 4-Pin SMD Module
Datasheet
NBPMANN150PGUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series NBP
Pressure Type Vented Gauge
Operating Pressure 150 PSI (1034.21 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 130 mV (5V)
Accuracy ±0.25%
Operating Supply Voltage 1.8 V ~ 12 V
Port Size Male - 0.11" (2.74mm) Tube
Port Style Barbed
Termination Style Surface Mount (SMD,SMT)
Maximum Pressure 240 PSI (1654.74 kPa)
Operating Temperature Range -40°C ~ 125°C
Package 4-SMD, J-Lead, Top Port
Win Source Part Number 790549-NBPMANN150PGUNV
Popularity Medium
Supply and Demand Status Limited
Family Name NBPMANN150PG
Introduction Date June 29, 2012
ECCN EAR99
Country of Origin China
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian NBPMANN150PGUNV CAD Model

Description

The Honeywell Sensing and Productivity Solutions NBP series pressure sensor is a reliable and accurate solution for vented gauge pressure measurement applications.

  • Termination: Surface mount (SMD, SMT)
  • Package: 4-SMD, Top Port
  • Operating Temperature: -40°C to 125°C
  • Operating Supply Voltage: 1.8 V to 12 V
  • Output: 0 mV to 130 mV (5V)
  • Accuracy: ±0.25%
  • Port Size: Male 0.11" (2.74mm) tube
  • Port Style: Barbed
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Country of Origin: China
  • Estimated EOL Date: 2031
