Same model may have multiple batches, images only for reference.

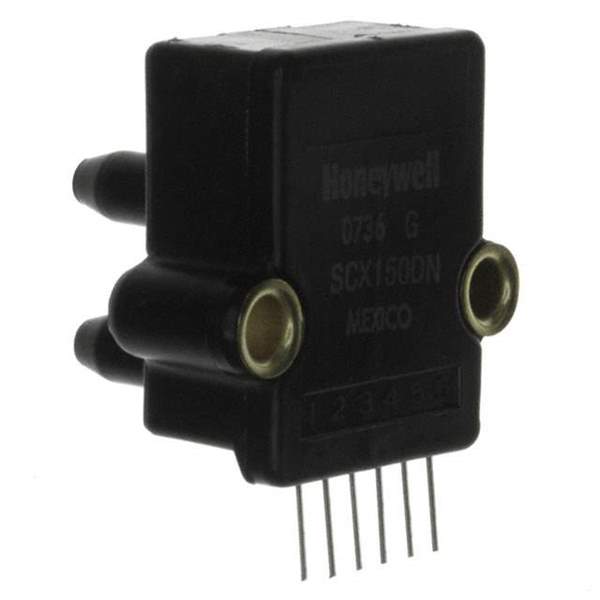

SCX150DN Real Image
Same model may have multiple batches, images only for reference.

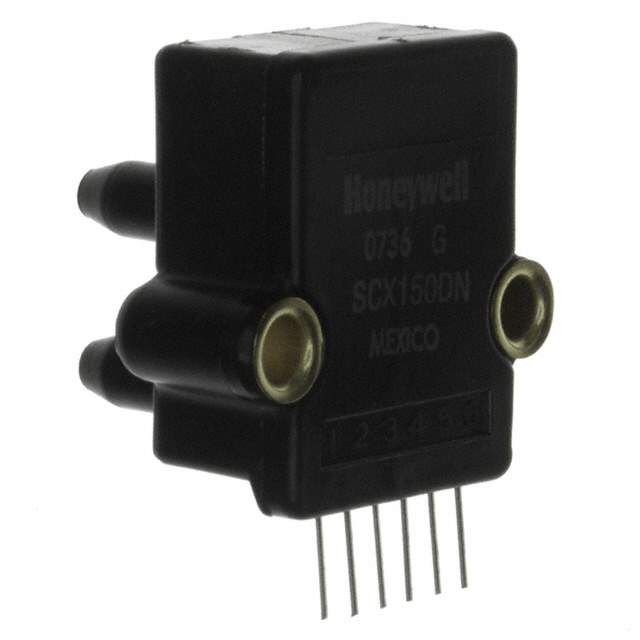

SCX150DN

Part No SCX150DN
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR TEMP COMP 150PSID / Pressure Sensor 150PSI (1034.21kPa) Differential Male - 0.19" (4.8mm) Tube, Dual 0 mV ~ 90 mV (12V) 6-SIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SCX
Package Bulk
Product Status Obsolete
Applications Board Mount
Pressure Type Differential
Operating Pressure 150PSI (1034.21kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 90 mV (12V)
Accuracy ±1%
Voltage - Supply 20V
Port Size Male - 0.19" (4.8mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 150PSI (1034.21kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 6-SIP Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Names 287-1022,2266-SCX150DN,287-1022-NDR
Standard Package 25
Win Source Part Number 1015647-SCX150DN
Ultra Librarian 3D Model Ultra Librarian SCX150DN CAD Model

Description

The 1015647-SCX150DN is a high-quality pressure sensor manufactured by Honeywell Sensing and Productivity Solutions.

  • Pressure Type: Differential
  • Maximum Pressure: 150PSI (1034.21kPa)
  • Temperature Range: -40C to 85C
  • Accuracy: +/-1%
  • Series: SCX
  • Output Type: Wheatstone bridge
  • Output Range: 0mV to 90mV (12V)
  • Features: Temperature Compensation
  • Application: Board Mount
  • Package Quantity: 25 sensors
  • Package: 6-SIP module
