Same model may have multiple batches, images only for reference.

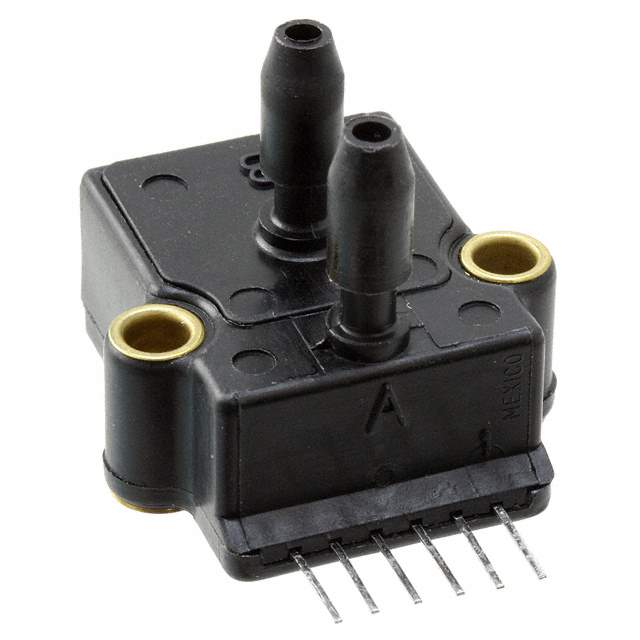

SCX15DNC Real Image
Same model may have multiple batches, images only for reference.

SCX15DNC

Part No SCX15DNC
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR TEMP COMP 15 PS ID / Pressure Sensor 15PSI (103.42kPa) Differential Male - 0.19" (4.8mm) Tube, Dual 0 mV ~ 90 mV (12V) 6-SIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SCX
Package Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure 15PSI (103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 90 mV (12V)
Accuracy ±5%
Voltage - Supply 20V
Port Size Male - 0.19" (4.8mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 30PSI (206.84kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 6-SIP Module
Base Product Number SCX15
Other Names Q1259314,SCX15DNC,SCX15DNCR,480-5164,2266-SCX15DNC
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234798-SCX15DNC
Ultra Librarian 3D Model Ultra Librarian SCX15DNC CAD Model

Description

The SCX pressure sensor is a reliable and accurate sensor designed for board mount applications.

  • Temperature Compensated: Yes
  • Output: Wheatstone bridge
  • Output: 0 mV ~ 90 mV (12V)
  • Pressure Type: differential
  • Operating Pressure: 15PSI (103.42kPa)
  • Maximum Pressure: 30PSI (206.84kPa)
  • Voltage Supply: 20V
  • Package/Case: 6-SIP Module
  • MSL Level: 1 (Unlimited)
  • HTSUS: 9026.20.4000
  • Base Product Number: SCX15
