Same model may have multiple batches, images only for reference.

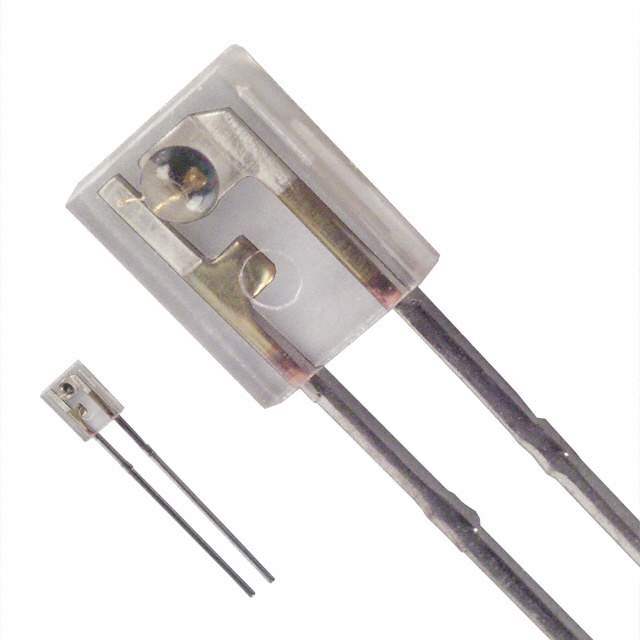

SDP8406-001 Real Image
Same model may have multiple batches, images only for reference.

SDP8406-001

Part No SDP8406-001
Manufacturer Honeywell
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 935NM SIDE VIEW RAD / Phototransistors 935nm Side View Radial
Datasheet
SDP8406-001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr Honeywell Sensing and Productivity Solutions
Package Bulk
Product Status Obsolete
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Dark (Id) (Max) 100 nA
Wavelength 935nm
Viewing Angle 50°
Power - Max 100 mW
Mounting Type Through Hole, Right Angle
Orientation Side View
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case Radial
Other Names 2266-SDP8406-001
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 1234912-SDP8406-001
Ultra Librarian 3D Model Ultra Librarian SDP8406-001 CAD Model

Description

The Honeywell Sensing and Productivity Solutions SDP8406-001 is a phototransistor that operates @ a maximum power of 100mW and a maximum voltage of 30V collector-emitter breakdown.

  • Viewing Angle: 50°
  • Wavelength: 935nm
  • Mounting Type: Through-hole, right-angle
  • Package: Radial package
  • Operating Temperature: -40°C to 85°C temperature range
  • ECCN: EAR99
  • Status: Obsolete
  • Standard Package: 100
