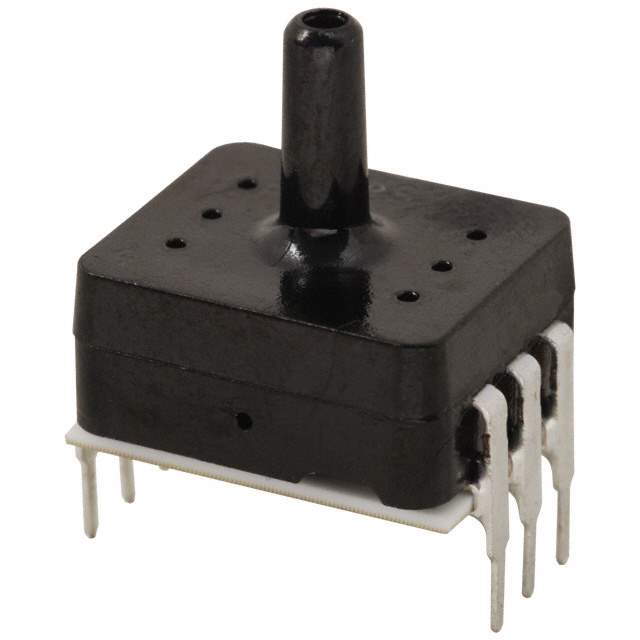

SDX15G2 Real Image
Same model may have multiple batches, images only for reference.

SDX15G2

Part No SDX15G2
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR TEMP COMP 15PSIG DIP / Pressure Sensor 15PSI (103.42kPa) Vented Gauge Male - 0.11" (2.67mm) Tube 0 mV ~ 90 mV (12V) 6-DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SDX
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 15PSI (103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 90 mV (12V)
Accuracy ±1%
Voltage - Supply 20V
Port Size Male - 0.11" (2.67mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 30PSI (206.84kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 6-DIP Module
Other Names Q3439181,287-1039,2266-SDX15G2,287-1039R
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234784-SDX15G2
Ultra Librarian 3D Model Ultra Librarian SDX15G2 CAD Model

Description

The Honeywell SDX15G2 is a pressure sensor that belongs to the Sensors, Transducers category.

  • Termination Style: PC Pin
  • Temperature Compensation: Yes
  • Package: Bulk
  • Package Quantity: 25
  • Output Type: Wheatstone Bridge
  • Output: 0 mV ~ 90 mV (12V)
  • Accuracy: ±1%
  • Pressure Type: Vented Gauge
  • Operating Pressure: 15PSI (103.42kPa)
  • Port Size: Male - 0.11" (2.67mm) Tube
  • Port Style: Barbless
  • Maximum Pressure: 30PSI (206.84kPa)
  • Voltage Supply: 20V
  • Package/Case: 6-DIP Module
  • Operating Temperature: -40°C ~ 85°C
  • HTSUS: 9026.20.4000
  • Other Names: Q3439181, 287-1039, 2266-SDX15G2, and 287-1039R
