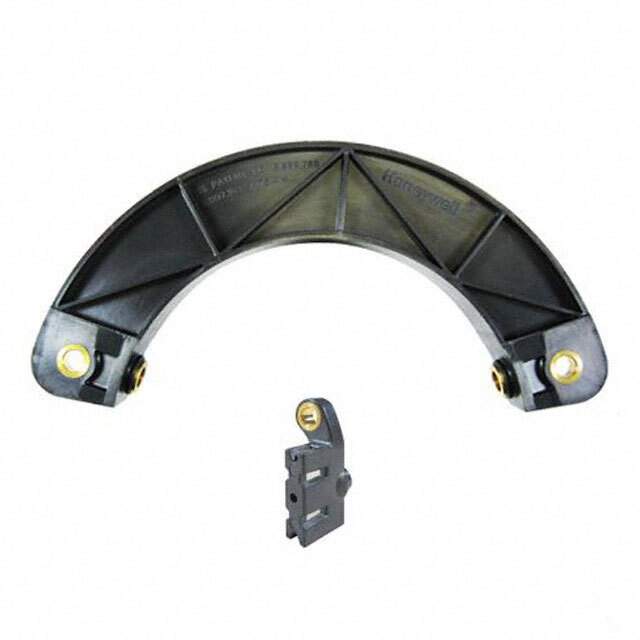

SPS-A100D-HAMS Real Image
Same model may have multiple batches, images only for reference.

SPS-A100D-HAMS

Part No SPS-A100D-HAMS
Manufacturer Honeywell
Catalog Position Sensors - Angle, Linear Position Measuring
Description SENSOR ANGLE 100DEG CONNECTOR  /  Magnetoresistive Sensor Angle External Magnet, Included Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Position Sensors - Angle, Linear Position Measuring
Mfr Honeywell Sensing and Productivity Solutions
Series SPS
For Measuring Angle
Technology Magnetoresistive
Rotation Angle - Electrical, Mechanical 0° ~ 100°
Output Analog Voltage
Actuator Type External Magnet, Included
Linearity ±0.4%
Voltage - Supply 6V ~ 24V
Mounting Type Chassis Mount
Termination Style Connector
Temperature Range - Operating -40°C ~ 85°C
Package / Case Arch, 100°
Base Product Number SPS-A100
Other Names 480-3329,SPSA100DHAMS
Standard Package 5
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 1234892-SPS-A100D-HAMS
Ultra Librarian 3D Model Ultra Librarian SPS-A100D-HAMS CAD Model

Description

The SPS-A100D-HAMS is a magnetoresistive position sensor designed for measuring angles.

  • Output Signal: Analog voltage
  • Linearity: ±0.4%
  • Rotation Angle Range: 0° to 100°
  • Voltage Supply: 6V to 24V
  • Package: Chassis mount arch with a 100° rotation angle
  • Termination Style: Connector
  • Temperature Range: -40°C to 85°C
  • Manufacturer: Honeywell Sensing and Productivity Solutions
