Same model may have multiple batches, images only for reference.

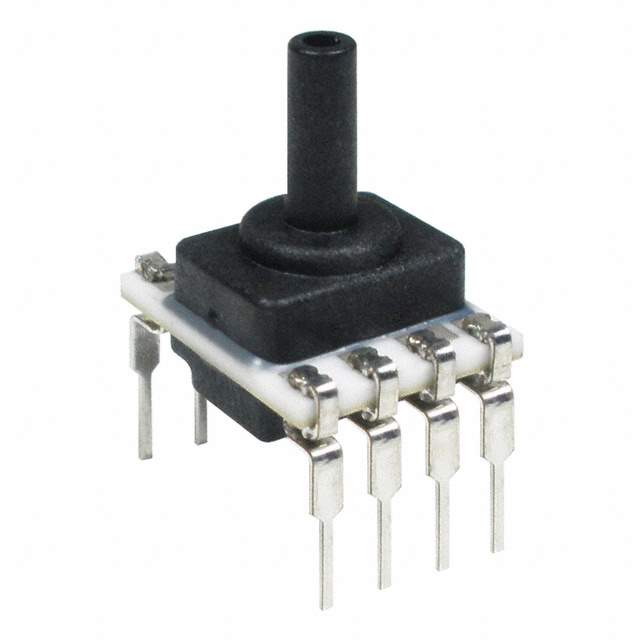

SSCDLNN040MD2A3 Real Image
Same model may have multiple batches, images only for reference.

SSCDLNN040MD2A3

Part No SSCDLNN040MD2A3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 40PSI DIFF 3.3V DIP / Pressure Sensor ±0.58PSI (±4kPa) Differential Male - 0.1" (2.47mm) Tube 12 b 8-DIP (0.524", 13.30mm), Top Port
Datasheet
SSCDLNN040MD2A3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure ±0.58PSI (±4kPa)
Output Type I2C
Output 12 b
Accuracy ±0.25%
Voltage - Supply 3.27V ~ 3.33V
Port Size Male - 0.1" (2.47mm) Tube
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±12.33PSI (±85kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 8-DIP (0.524", 13.30mm), Top Port
Supplier Device Package 8-DIP
Base Product Number SSCDLNN
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234638-SSCDLNN040MD2A3
Ultra Librarian 3D Model Ultra Librarian SSCDLNN040MD2A3 CAD Model

Description

The Honeywell TruStability SSC pressure sensor is a highly accurate sensor that is ideal for use in board mount applications.

  • Amplified Output: Yes
  • Temperature Compensated: Yes
  • Output Type: I2C
  • Output: 12 b
  • Accuracy: ±0.25%
  • Pressure Type: differential pressure types
  • Operating Pressure: ±0.58PSI (±4kPa)
  • Maximum Pressure: ±12.33PSI (±85kPa)
  • Port Size: male - 0.1" (2.47mm) tube
  • Port Style: barbed port style
  • Voltage Supply: 3.27V ~ 3.33V
  • Operating Temperature Range: -40°C ~ 85°C
  • Package: 8-DIP (0.524", 13.30mm) top port package
