Same model may have multiple batches, images only for reference.

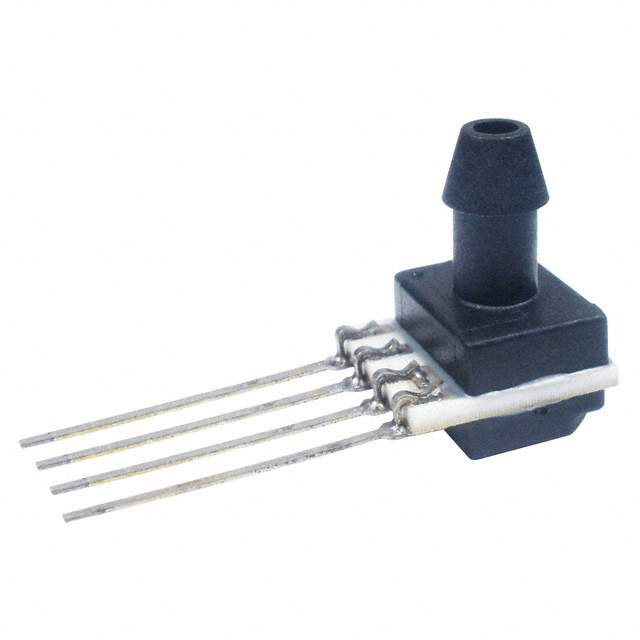

SSCSANT001BGAA5 Real Image
Same model may have multiple batches, images only for reference.

SSCSANT001BGAA5

Part No SSCSANT001BGAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor 14.5PSI (100kPa) Vented Gauge Male - 0.19" (4.93mm) Tube 0.5 V ~ 4.5 V 4-SIP, Side Port
Datasheet
SSCSANT001BGAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 14.5PSI (100kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.19" (4.93mm) Tube
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 29.01PSI (200kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP, Side Port
Supplier Device Package 4-SIP
Base Product Number SSCSANT
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234464-SSCSANT001BGAA5
Ultra Librarian 3D Model Ultra Librarian SSCSANT001BGAA5 CAD Model

Description

The Honeywell Sensing and Productivity Solutions TruStability SSC pressure sensor is an amplified output, temperature compensated component suitable for use in board mount applications.

  • Pressure Type: vented gauge
  • Operating Pressure: 14.5PSI (100kPa)
  • Package: 4-SIP, side port
  • Output Type: analog voltage
  • Voltage Supply: 4.75V to 5.25V
  • Accuracy: ±0.25%
