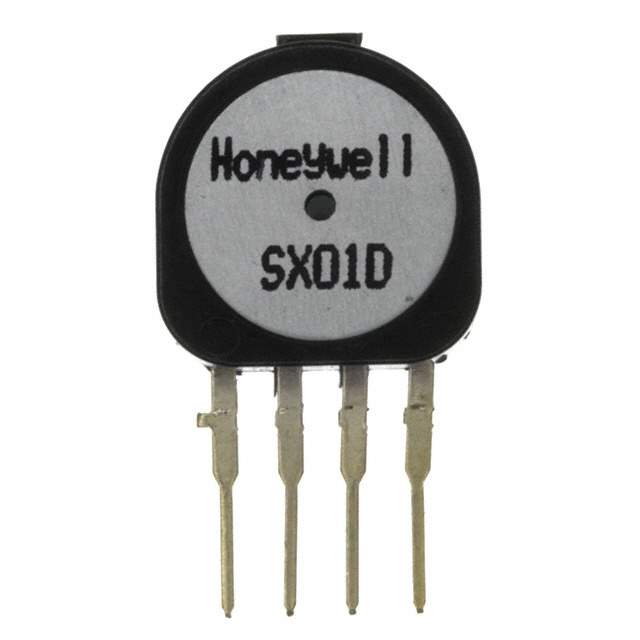

SX01D Real Image
Same model may have multiple batches, images only for reference.

SX01D

Part No SX01D
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR HI-IMP 1PSID BUTN PKG / Pressure Sensor 1PSI (6.89kPa) Differential 0 mV ~ 20 mV (5V) 4-SIP Module
Datasheet
SX01D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Package Bulk
Product Status Obsolete
Applications Board Mount
Pressure Type Differential
Operating Pressure 1PSI (6.89kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 20 mV (5V)
Accuracy ±0.5%
Voltage - Supply 12V
Port Style No Port
Maximum Pressure 20PSI (137.9kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP Module
Supplier Device Package Button
Other Names 287-1064,287-1064R
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234830-SX01D
Ultra Librarian 3D Model Ultra Librarian SX01D CAD Model

Description

The Honeywell Sensing and Productivity Solutions SX01D pressure sensor is a highly accurate and reliable sensor for measuring differential pressure.

  • Operating Pressure Range: 1 PSI to 20 PSI
  • Output: Wheatstone bridge output with a range of 0 mV to 20 mV @ 5V
  • Accuracy: ±0.5%
  • Package: 4-SIP module with button leads, making it suitable for board mount applications
  • Voltage Supply Range: 12V
  • Operating Temperature Range: -40°C to 85°C
