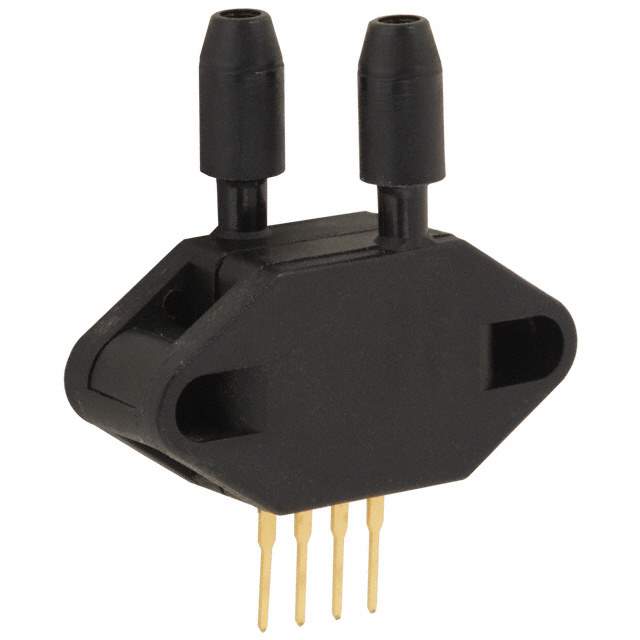

SX100DN Real Image
Same model may have multiple batches, images only for reference.

SX100DN

Part No SX100DN
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRESS DIFF 100PSI / Pressure Sensor 100PSI (689.48kPa) Differential Male - 0.19" (4.8mm) Tube, Dual 0 mV ~ 150 mV (5V) 4-SIP Module
Datasheet
SX100DN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Package Tray
Product Status Obsolete
Applications Board Mount
Pressure Type Differential
Operating Pressure 100PSI (689.48kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 150 mV (5V)
Accuracy ±0.5%
Voltage - Supply 12V
Port Size Male - 0.19" (4.8mm) Tube, Dual
Port Style Barbless
Termination Style PC Pin
Maximum Pressure 150PSI (1034.21kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP Module
Other Names 480-2870
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234820-SX100DN
Ultra Librarian 3D Model Ultra Librarian SX100DN CAD Model

Description

The Honeywell Sensing and Productivity Solutions 1234820-SX100DN is a differential pressure sensor that operates on a voltage supply of 12V.

  • Termination Style: PC Pin
  • Port Size: male - 0.19" (4.8mm) tube, dual
  • Output Signal: Wheatstone bridge
  • Accuracy: ±0.5%
  • Operating Pressure: 100PSI (689.48kPa)
  • Maximum Pressure: 150PSI (1034.21kPa)
  • Package/Case: 4-SIP module
  • Operating Temperature: -40°C ~ 85°C
  • Status: Obsolete
