Same model may have multiple batches, images only for reference.

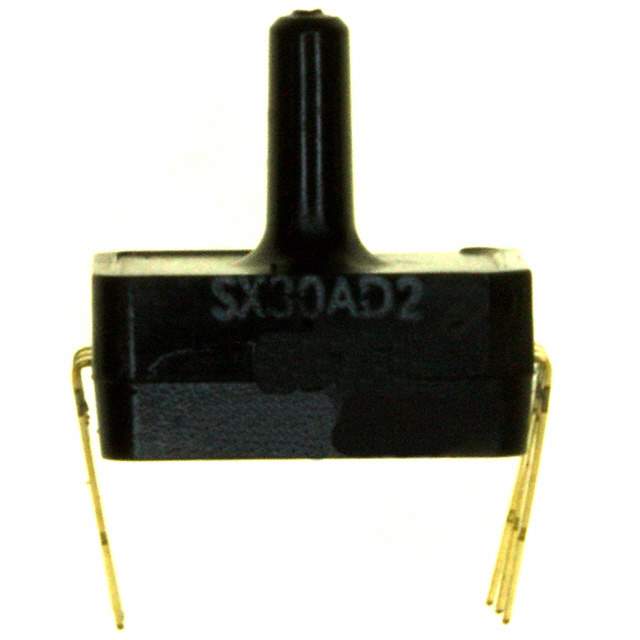

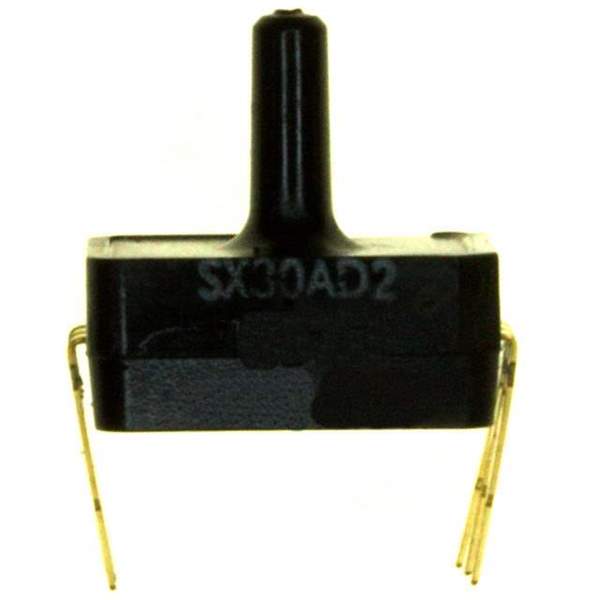

SX30AD2 Real Image
Same model may have multiple batches, images only for reference.

SX30AD2

Part No SX30AD2
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR HI-IMP 30PSIA DIP PKG / Pressure Sensor 30PSI (206.84kPa) Absolute Male - 0.11" (2.67mm) Tube 0 mV ~ 110 mV (5V) 6-DIP Module
Datasheet
SX30AD2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Package Bulk
Product Status Obsolete
Applications Board Mount
Pressure Type Absolute
Operating Pressure 30PSI (206.84kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 110 mV (5V)
Accuracy ±0.5%
Voltage - Supply 12V
Port Size Male - 0.11" (2.67mm) Tube
Port Style Barbless
Maximum Pressure 90PSI (620.53kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 6-DIP Module
Supplier Device Package 6-DIP
Other Names 287-1085,287-1085R
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234840-SX30AD2
Ultra Librarian 3D Model Ultra Librarian SX30AD2 CAD Model

Description

The Honeywell Sensing and Productivity Solutions SX30AD2 is an obsolete electronic component that is designed for use in sensors and transducers.

  • Port Size: male 0.11" (2.67mm) tube port size
  • Package: 6-DIP package
  • Operating Pressure: 30PSI (206.84kPa)
  • Maximum Pressure: 90PSI (620.53kPa)
