Same model may have multiple batches, images only for reference.

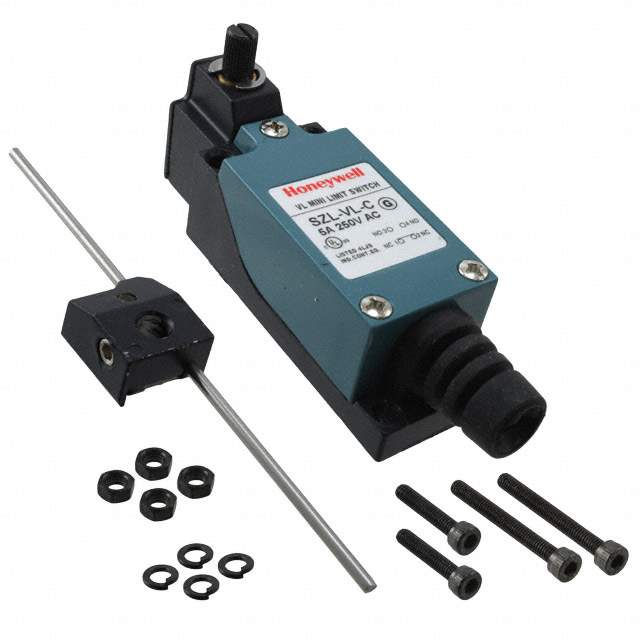

SZL-VL-C Real Image
Same model may have multiple batches, images only for reference.

SZL-VL-C

Part No SZL-VL-C
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 250V / Switch SPDT (DB/DM) Chassis Mount
Datasheet
SZL-VL-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SZL-VL
Package Bulk
Product Status Obsolete
Circuit SPDT (DB/DM)
Switch Function On-Mom
Current Rating (Amps) 5A (AC), 400mA (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Actuator Type Side Rotary, Adjustable Rod
Mounting Type Chassis Mount
Termination Style Cable Gland
Ingress Protection IP64 - Dust Tight, Water Resistant
Operating Force 204 ~ 800gf
Release Force 12 ~ 50gf
Pretravel 20°
Differential Travel 10°
Overtravel 75°
Temperature Range - Operating -20°C ~ 60°C
Mechanical Life 10,000,000 Cycles
Other Names 480-5207,SZL-VL-C,SZLVLC
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Win Source Part Number 1233650-SZL-VL-C
Ultra Librarian 3D Model Ultra Librarian SZL-VL-C CAD Model

Description

The Honeywell SZL-VL-C is a limit switch designed for use in switch applications.

  • Circuit: Single-pole double-throw (SPDT)
  • Actuator Type: Side rotary, adjustable rod
  • Mounting Type: Chassis mount
  • Temperature Range: -20°C to 60°C
  • Voltage Rating: 250 V AC and 125 V DC
  • Current Rating: 5A AC and 400mA DC
  • Termination Style: Cable gland
  • Package: Bulk
  • Ingress Protection Rating: IP64
