Same model may have multiple batches, images only for reference.

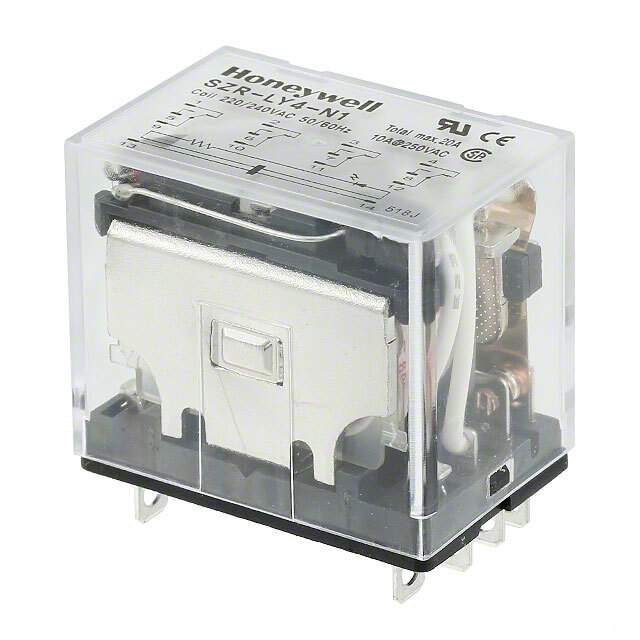

SZR-LY4-N1-AC220V Real Image
Same model may have multiple batches, images only for reference.

SZR-LY4-N1-AC220V

Part No SZR-LY4-N1-AC220V
Manufacturer Honeywell
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 10A 220V / General Purpose Relay 4PDT (4 Form C) 220VAC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Honeywell Sensing and Productivity Solutions
Series SZR-LY
Package Bulk
Mounting Type Socketable
Coil Voltage 220VAC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 13.8 mA
Coil Type Non Latching
Features Lighted Indicator
Termination Style Plug In
Must Operate Voltage 176 VAC
Must Release Voltage 66 VAC
Operate Time 25 ms
Release Time 25 ms
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 6.7 kOhms
Base Product Number SZR-LY4
Other Names 480-6225,SZR-LY4-N1-AC220V
Standard Package 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.49.0050
Win Source Part Number 1237324-SZR-LY4-N1-AC220V
Ultra Librarian 3D Model Ultra Librarian SZR-LY4-N1-AC220V CAD Model

Description

The SZR-LY4-N1-AC220V is a plug-in relay from Honeywell Sensing and Productivity Solutions that features a 4PDT (4 Form C) contact form with a contact rating of 10 A.

  • Contact Form: 4PDT (4 Form C)
  • Contact Rating: 10 A
  • Coil Voltage: 220VAC
  • Coil Resistance: 6.7 kOhms
  • Coil Current: 13.8 mA
  • Switching Voltage: 250VAC and 125VDC
  • Release Time: 25 ms
  • Operate Time: 25 ms
  • Mounting Type: Socketable
  • Package: Bulk
  • Package Quantity: 10
  • Series: SZR-LY
  • Features: Lighted Indicator
