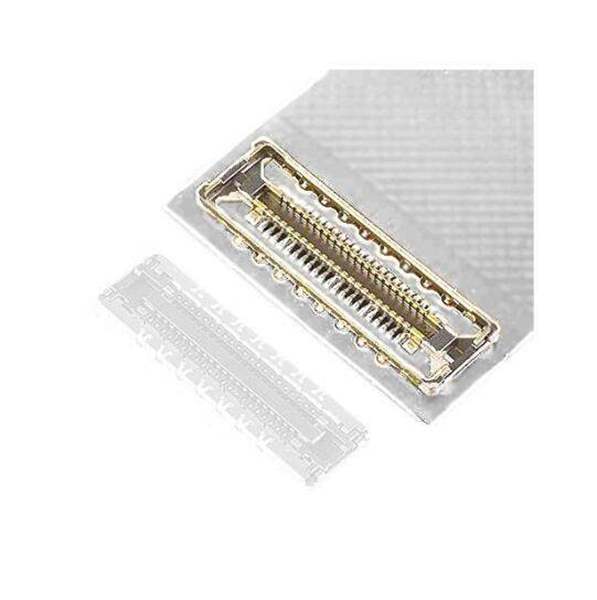

20697-042E-01I-PEX
Same model may have multiple batches, images only for reference.

20697-042E-01

Part No 20697-042E-01
Manufacturer I-Pex
Catalog Rectangular - Board to Board Connectors
Description NOVASTACK 35-HDP PLUG 46P
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer I-PEX
Category Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Series NOVASTACK® 35-HDP
Product Status Active
Connector Type Plug, Outer Shroud Contacts
Number of Positions 46 (42 + 4 Power)
Pitch 0.014" (0.35mm)
Mounting Type Surface Mount
Contact Finish Gold
Contact Finish Thickness 1.97µin (0.050µm)
Height Above Board 0.026" (0.65mm)
Win Source Part Number WS1206849-20697-042E-01
Ultra Librarian 3D Model Ultra Librarian 20697-042E-01 CAD Model

Description

46 (42 + 4 Power) Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
