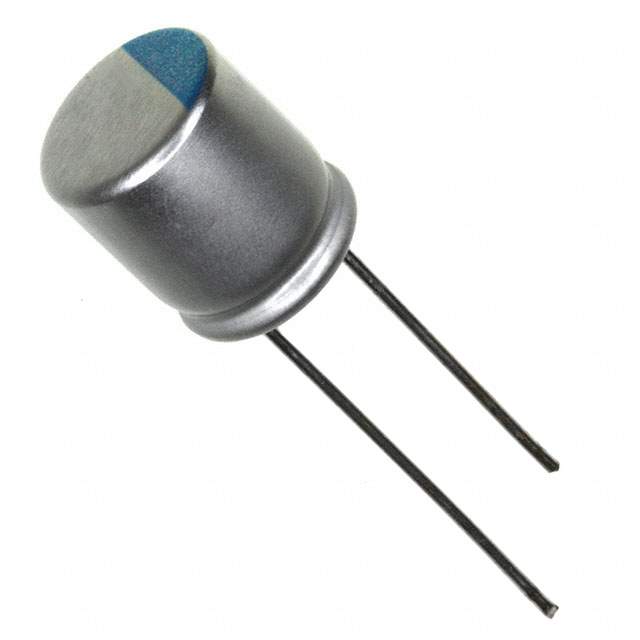

687AVG025MGBJ Real Image
Same model may have multiple batches, images only for reference.

687AVG025MGBJ

Part No 687AVG025MGBJ
Manufacturer Illinois Capacitor
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 680UF 20% 25V T/H / Cap Aluminum Polymer 680uF 25VDC 20% (10 X 12mm) Radial 5mm 0.016 Ohm 4700mA 2000h 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Illinois Capacitor
Series AVG
Packaging Bulk
Type Polymer
Capacitance 680μF
Tolerance ±20%
Voltage Rating DC 25V
ESR (Equivalent Series Resistance) 292.56 mOhm
Lifetime @ Temp. 1500 Hrs @ 125°C
Operating Temperature Range -55°C ~ 125°C
Applications General
Ripple Current - Low Frequency 235mA @ 120Hz
Ripple Current - High Frequency 4.7A @ 100kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.532" (13.50mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 799057-687AVG025MGBJ
Popularity Medium
Supply and Demand Status Limited
Family Name AVG
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian 687AVG025MGBJ CAD Model

Description

The Illinois Capacitor 799057-687AVG025MGBJ is a polymer type capacitor.

  • Capacitance: 680µF
  • Tolerance: ±20%
  • Mounting: Through-hole
