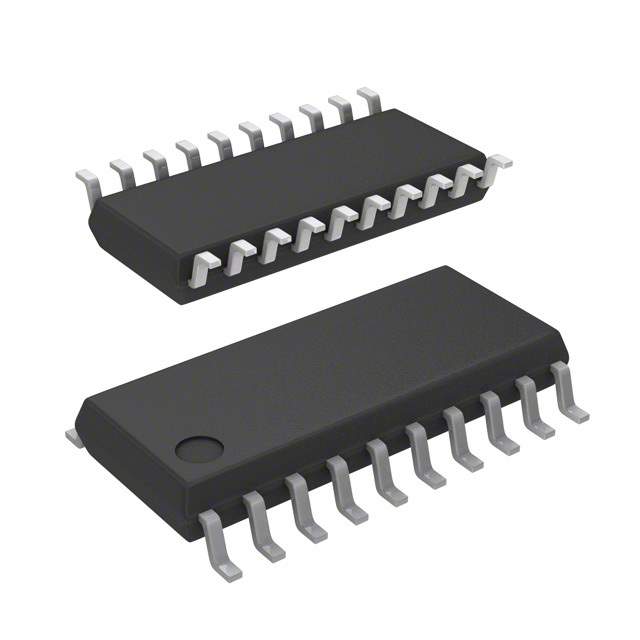

2ED020I06FIXUMA1

Name: 2ED020I06FIXUMA1
Brand: Infineon Technologies
SKU: 980180
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	2ED020I06FIXUMA1
Manufacturer	Infineon Technologies
Catalog	PMIC - Gate Drivers
Description	IC GATE DRVR HALF-BRIDGE DSO18-2 / Half-Bridge Gate Driver IC Inverting PG-DSO-18-2
Datasheet	2ED020I06FIXUMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>PMIC - Gate Drivers
Mfr	Infineon Technologies
Package	Tape & Reel
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	IGBT, N-Channel MOSFET
Voltage - Supply	14V ~ 18V
Logic Voltage - VIL, VIH	0.8V, 2V
Current - Peak Output (Source, Sink)	1A, 2A
Input Type	Inverting
High Side Voltage - Max (Bootstrap)	650 V
Rise / Fall Time (Typ)	20ns, 20ns
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting	SMD (SMT)
Package / Case	18-SOIC (0.295", 7.50mm Width)
Supplier Device Package	PG-DSO-18-2
Base Product Number	2ED020
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Other Names	2ED020I06FIXUMA1TR,2156-2ED020I06FIXUMA1,2ED020I06FIXUMA1-ND,2ED020I06FIXUMA1CT,SP000776988,2ED020I06FIXUMA1DKR,INFINF2ED020I06FIXUMA1
Standard Package	1,000
Win Source Part Number	980180-2ED020I06FIXUMA1
Ultra Librarian 3D Model	Ultra Librarian 2ED020I06FIXUMA1 CAD Model

Description

The 2ED020I06FIXUMA1 from Infineon Technologies is a gate driver IC for IGBT and N-channel MOSFET devices.

Manufacturer: Infineon Technologies
Device Type: Gate Driver IC for IGBT and N-channel MOSFET
Package: 18-SOIC (0.295", 7.50mm Width)
Operating Temperature: -40°C to 125°C (TJ)
Number of Channels: Two independent channels
Driven Configuration: Half-bridge driven
Logic Voltage: 0.8V and 2V
Peak Output Current: 1A and 2A
