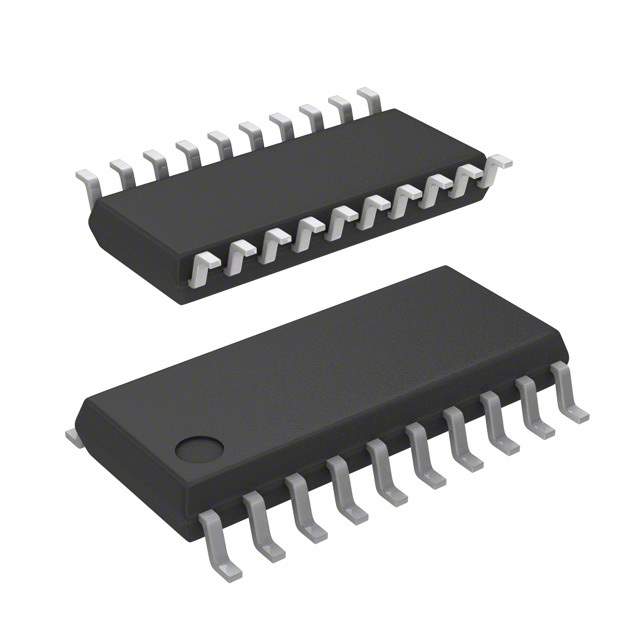

2ED020I12-F Real Image
Same model may have multiple batches, images only for reference.

2ED020I12-F

Part No 2ED020I12-F
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description Dual IGBT Driver IC for eupec Low and Medium Power IGBT Modules | IC DRIVER IGBT 2-CHAN PDSO-18-1
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Tape and Reel
Status Obsolete
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type IGBT, N-Channel MOSFET
Supply Voltage (V) 0V ~ 18V
Current - Peak Output (Source, Sink) 1A, 2A
Input Type Inverting
High Side Voltage - Max (Bootstrap) 1200V
Mounting Style SMD
Manufacturer Package 20-SOIC, 18 Leads
Supplier Device Package PG-DSO-18-2
Family Part Number 2ED020I12-F
Manufacturer Pack Quantity 1,000
MSL Level 3 (168 Hours)
Win Source Part Number 1123564-2ED020I12-F
Manufacturer Homepage www.eupec.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2ED020I12-F CAD Model

Description

The Infineon Technologies 2ED020I12-F is an integrated circuit with two independent drivers for half-bridge configurations.

  • Designed For: IGBT and N-Channel MOSFET gate drivers
  • Maximum High-Side Voltage: 1200V
  • Peak Output Current (Source): 1A
  • Peak Output Current (Sink): 2A
  • Input Type: Inverting
  • Gate Type: IGBT and N-Channel MOSFET
  • Package: PG-DSO-18-2
  • Supply Voltage Range: 0V to 18V
  • Applications: Motor control and power supplies
