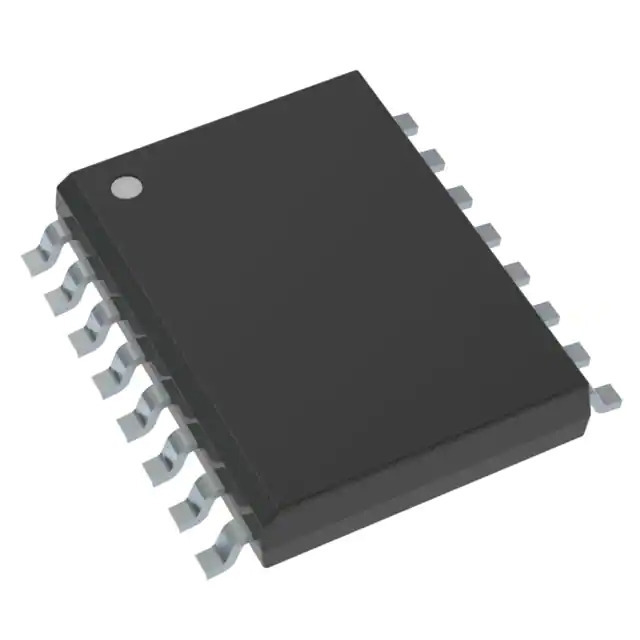

2EDS8265HXUMA2

Name: 2EDS8265HXUMA2
Brand: Infineon Technologies
SKU: 1372564
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	2EDS8265HXUMA2
Manufacturer	Infineon Technologies
Catalog	PMIC - Gate Drivers
Description	IC GATE DRIVER HALF-BRIDGE DSO16
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr	Infineon Technologies
Series	EiceDriver™
Package	Tape & Reel
Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	N-Channel, P-Channel MOSFET
Voltage - Supply	20V
Logic Voltage - VIL, VIH	-, 1.65V
Current - Peak Output (Source, Sink)	4A, 8A
Input Type	Non-Inverting
Rise / Fall Time (Typ)	6.5ns, 4.5ns
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	PG-DSO-16-30
Base Product Number	2EDS8265
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1372564-2EDS8265HXUMA2
Ultra Librarian 3D Model	Ultra Librarian 2EDS8265HXUMA2 CAD Model

Alternative Products

Description

The Infineon Technologies 2EDS8265HXUMA2 is a gate driver integrated circuit (IC) used in power management applications.

Series: EiceDriver™
Input Type: Non-Inverting
Mounting Type: Surface Mount
Package: 16-SOIC
Voltage Supply: 20V
Rise/Fall Time: 6.5ns/4.5ns
Configuration: Half-Bridge
Number of Drivers: 2 (Independent)
Peak Output Current (Source): 4A
Peak Output Current (Sink): 8A
MOSFET Type: N-Channel, P-Channel
