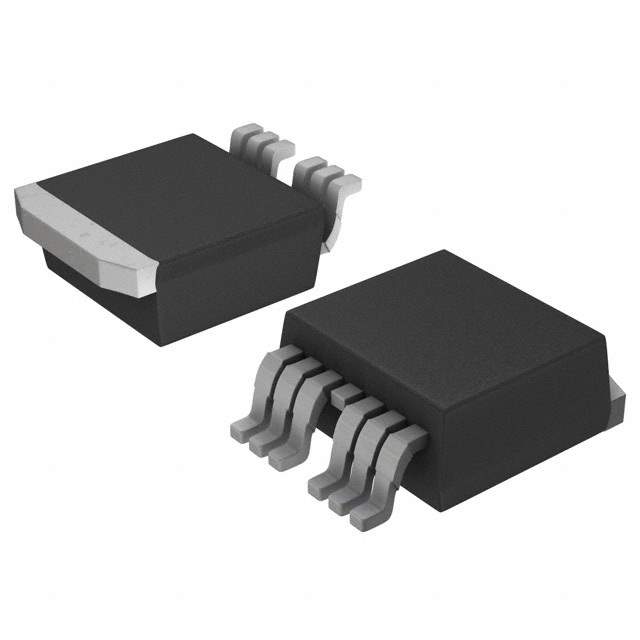

AUIRF3805S-7TRL Real Image
Same model may have multiple batches, images only for reference.

AUIRF3805S-7TRL

Part No AUIRF3805S-7TRL
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 55V 160A HEXFET / Trans MOSFET N-CH Si 55V 240A Automotive 7-Pin(6+Tab) D2PAK T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Series HEXFET
Packaging Reel package
Channel Type Type N
Technology MOSFET
Drain Source Voltage 55V
Current - Continuous Drain (Id) @ 25°C 160A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs(th) (Maximum) @ Id 4V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 200nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 7820pF @ 25V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 300W (Tc)
Rds On (Maximum) @ Id, Vgs 2.6 mOhm @ 140A, 10V
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting SMD
Manufacturer Package D2PAK (7-Lead)
Package TO-263-7, D2Pak (6 Leads + Tab), TO-263CB
Win Source Part Number 769350-AUIRF3805S-7TRL
Popularity Medium
Supply and Demand Status Balance
Family Name AUIRF3805S-7
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Mexico
Ultra Librarian 3D Model Ultra Librarian AUIRF3805S-7TRL CAD Model

Description

The Infineon Technologies AUIRF3805S-7TRL is a HEXFET series MOSFET, designed for discrete semiconductor products.

  • Current continuous drain @ 25°C: 160A (Tc)
  • Maximum power dissipation: 300W (Tc)
  • Gate charge (Qg) @ 10V: 200nC
  • Input capacitance (Ciss) @ 25V: 7820pF
  • Maximum Vgs: ±20V
  • Maximum Rds On @ 140A, 10V: 2.6 mOhm
  • Package: TO-263-7, D2Pak (6 Leads + Tab), TO-263CB
  • Mounting: SMD
  • Drive voltage (Max Rds On, Min Rds On): 10V
  • Vgs(th) (Maximum) @ Id: 4V @ 250μA
  • Operating temperature range: -55°C ~ 175°C (TJ)
  • Manufactured in: Mexico
