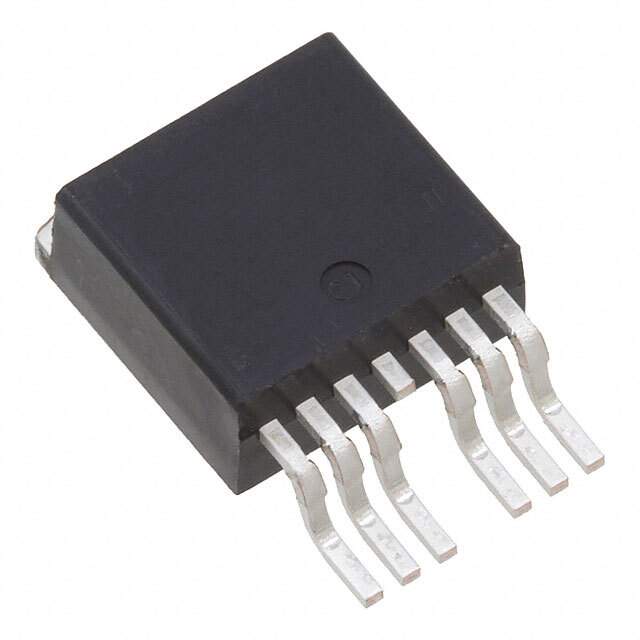

AUIRFS8409-7TRL Real Image AUIRFS8409-7TRL Real Image1 AUIRFS8409-7TRL Real Image2
Same model may have multiple batches, images only for reference.
AUIRFS8409-7TRL Real Image AUIRFS8409-7TRL Real Image1 AUIRFS8409-7TRL Real Image2
AUIRFS8409-7TRL Real Image AUIRFS8409-7TRL Real Image1 AUIRFS8409-7TRL Real Image2
Same model may have multiple batches, images only for reference.

AUIRFS8409-7TRL

Part No AUIRFS8409-7TRL
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 240A D2PAK-7 / Trans MOSFET N-CH Si 40V 522A Automotive 7-Pin(6+Tab) D2PAK T/R
Datasheet
AUIRFS8409-7TRL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Series HEXFET
Packaging Reel package
Channel Type Type N
Technology MOSFET
Drain Source Voltage 40V
Current - Continuous Drain (Id) @ 25°C 240A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs(th) (Maximum) @ Id 3.9V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 460nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 13975pF @ 25V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 375W (Tc)
Rds On (Maximum) @ Id, Vgs 0.75 mOhm @ 100A, 10V
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting SMD
Manufacturer Package D2PAK (7-Lead)
Package TO-263-7, D2Pak (6 Leads + Tab)
Win Source Part Number 769354-AUIRFS8409-7TRL
Popularity Medium
Supply and Demand Status Limited
Family Name AUIRFS8409-7
Introduction Date April 30, 2013
ECCN EAR99
Country of Origin Mexico
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AUIRFS8409-7TRL CAD Model

Description

The Infineon Technologies AUIRFS8409-7TRL is a HEXFET MOSFET that is designed to deliver high performance in a TO-263-7, D2Pak (6 Leads + Tab) package.

  • N-channel MOSFET: Yes
  • Maximum drain-source voltage: 40V
  • Continuous drain current: 240A (Tc)
  • Gate charge (Qg) @ 10V: 460nC
  • Input capacitance (Ciss) @ 25V: 13975pF
  • Rds On (Maximum) @ Id, Vgs: 0.75 mOhm @ 100A, 10V
  • Operating temperature range: -55°C to 175°C (TJ)
  • Application: Discrete Semiconductor Products
