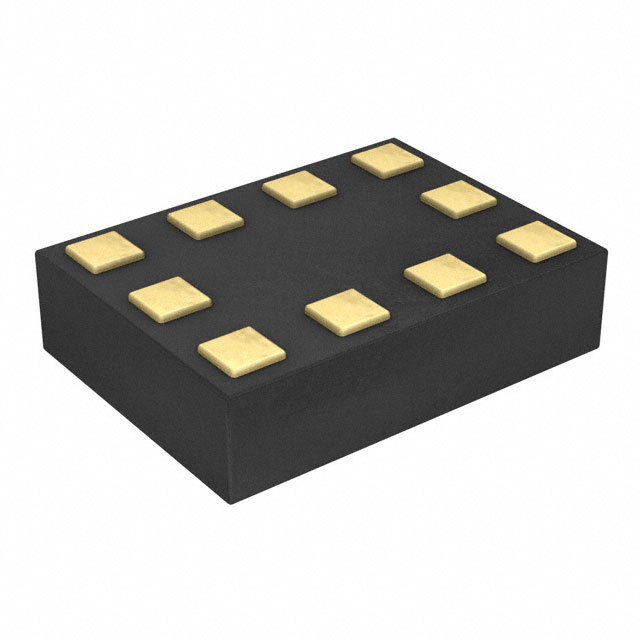

Same model may have multiple batches, images only for reference.
BGSA141MN10E6327XTSA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

BGSA141MN10E6327XTSA1

Part No BGSA141MN10E6327XTSA1
Manufacturer Infineon Technologies
Catalog RF Antennas
Description IC RF SWITCH SPST/SPDT/ TSNP10-3  /  RF Switch IC General Purpose SPST, SPDT, SP3T, SP4T 50Ohm TSNP-10-3
Datasheet
BGSA141MN10E6327XTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Switches
Mfr Infineon Technologies
Package Tape & Reel
Product Status Obsolete
RF Type General Purpose
Circuit SPST, SPDT, SP3T, SP4T
Frequency Range 100MHz ~ 4GHz
Isolation 13dB
Insertion Loss 0.8dB
Test Frequency 2.69GHz
IIP3 75dBm
Impedance 50Ohm
Voltage - Supply 2.3V ~ 3.6V
Temperature Range - Operating 125°C (TJ)
Package / Case 10-XFQFN
Supplier Device Package TSNP-10-3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names BGSA141MN10E6327XTSA1DKR,BGSA141MN10E6327XTSA1TR,SP001505416,BGSA141MN10E6327XTSA1CT,BGSA141MN10E6327XTSA1-ND,IFEINFBGSA141MN10E6327XTSA1,2156-BGSA141MN10E6327XTSA1
Standard Package 7,500
Win Source Part Number 1049211-BGSA141MN10E6327XTSA1
Ultra Librarian 3D Model Ultra Librarian BGSA141MN10E6327XTSA1 CAD Model

Description

The BGSA141MN10E6327XTSA1 is an RF switch from Infineon Technologies.

  • Circuit: SPST, SPDT, SP3T, or SP4T
  • Frequency Range: 100MHz to 4GHz
  • Impedance: 50 Ohm
  • Insertion Loss: 0.8dB
  • Isolation: 13dB
  • Voltage Supply Range: 2.3V to 3.6V
  • Package: 10-XFQFN
  • Device Package: TSNP-10-3
  • IIP3: 75dBm
  • ECCN: EAR99
  • Product Status: Obsolete
