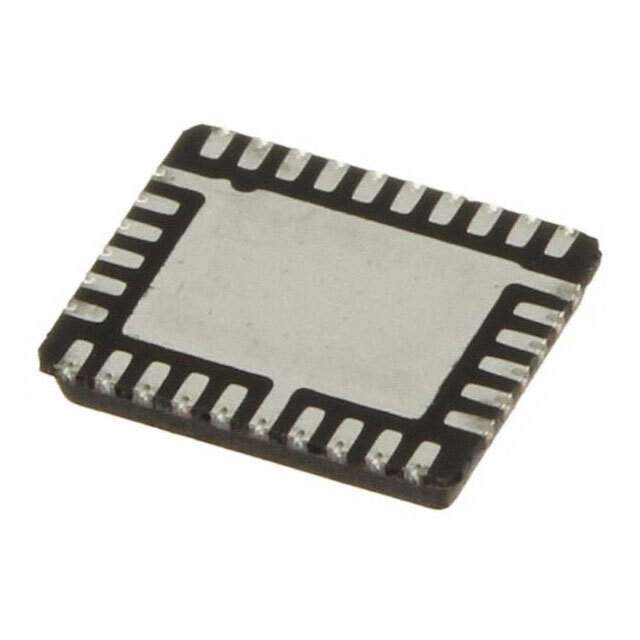

The BGT24ATR11 E6433 is a 24 GHz radar transceiver MMIC (Monolithic Microwave Integrated Circuit) manufactured by Infineon Technologies. This transceiver is designed for applications requiring precise distance and speed measurement using FMCW (Frequency Modulated Continuous Wave) radar technology. It integrates the transmitter and receiver functions in a single chip, providing a compact and efficient solution for radar systems.

Applications

• Automotive radar (e.g., blind spot detection, lane change assist)
• Industrial radar (e.g., level sensing, collision avoidance)
• Home automation (e.g., gesture recognition, presence detection)
• Security systems (e.g., intrusion detection)
• Traffic monitoring

Features

• 24 GHz operating frequency
• FMCW radar transceiver
• Integrated transmitter and receiver
• Low power consumption
• Small form factor
• Highly integrated MMIC

Benefits

• Accurate distance and speed measurement
• Compact and cost-effective radar solution
• Easy integration into various applications
• Low power consumption for extended battery life
• High reliability and performance

Additional Details

The BGT24ATR11 E6433 radar transceiver operates in the 24 GHz ISM (Industrial, Scientific, and Medical) band. It uses FMCW radar technology, where the frequency of the transmitted signal is continuously varied over time. By analyzing the frequency difference between the transmitted and received signals, the distance and speed of the target can be accurately determined. The transceiver is designed for low power consumption, making it suitable for battery-powered applications. Its small form factor and high level of integration simplify the design and manufacturing of radar systems. The BGT24ATR11 E6433 is a key component in various advanced driver-assistance systems (ADAS) and industrial sensing applications.
