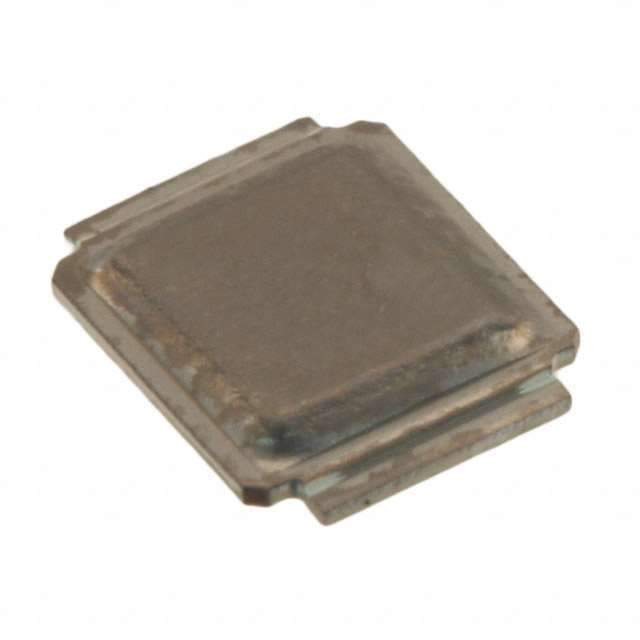

BSB056N10NN3GXUMA1

Name: BSB056N10NN3GXUMA1
Brand: Infineon Technologies
SKU: 961358
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BSB056N10NN3GXUMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 100V 9A/83A 2WDSON / N-Channel 100 V 9A (Ta), 83A (Tc) 2.8W (Ta), 78W (Tc) Surface Mount MG-WDSON-2, CanPAK M™
Datasheet	BSB056N10NN3GXUMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	OptiMOS™
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	9A (Ta), 83A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	5.6mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	3.5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	74 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5500 pF @ 50 V
Power Dissipation (Max)	2.8W (Ta), 78W (Tc)
Temperature Range - Operating	-40°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	MG-WDSON-2, CanPAK M™
Package / Case	3-WDSON
Base Product Number	BSB056
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	BSB056N10NN3 G-ND,BSB056N10NN3 GDKR-ND,BSB056N10NN3 GDKR,BSB056N10NN3 G,BSB056N10NN3 GCT,BSB056N10NN3GXUMA1TR,BSB056N10NN3G,BSB056N10NN3 GTR-ND,BSB056N10NN3 GCT-ND,SP000604540,BSB056N10NN3GXT,BSB056N10NN3GXUMA1CT,BSB056N10NN3GXUMA1DKR
Standard Package	5,000
Win Source Part Number	961358-BSB056N10NN3GXUMA1
Ultra Librarian 3D Model	Ultra Librarian BSB056N10NN3GXUMA1 CAD Model

Alternative Products

Description

The Infineon Technologies BSB056N10NN3GXUMA1 is an N-channel MOSFET transistor with a drain to source voltage of 100V and a continuous drain current of 9A @ 25°C.

Channel Type: N-channel
Drain to Source Voltage: 100V
Continuous Drain Current: 9A @ 25°C
Maximum Rds On: 5.6mOhm @ 30A
Vgs(th): 3.5V @ 100μA
Package: 3-WDSON
Gate Charge: 74nC @ 10V
Temperature Range: -40°C to 150°C (TJ)
Maximum Input Capacitance: 5500pF @ 50V
