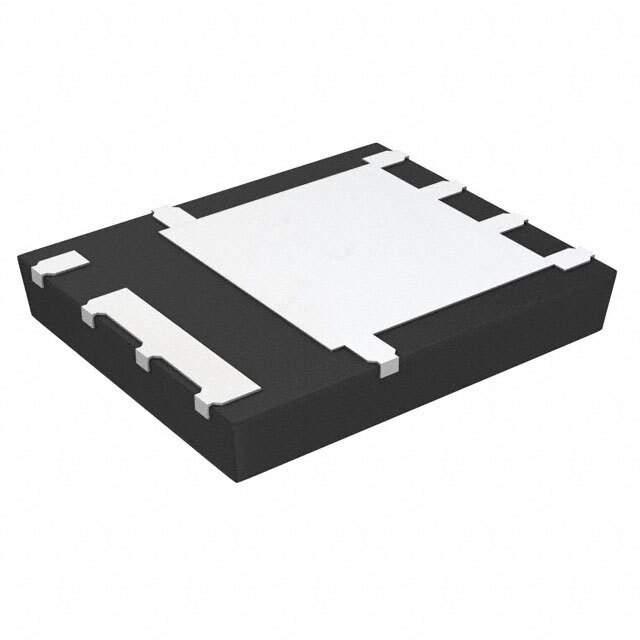

BSC014N04LSI Real Image BSC014N04LSI real image2710
Same model may have multiple batches, images only for reference.
BSC014N04LSI Real Image BSC014N04LSI real image2710
BSC014N04LSI Real Image BSC014N04LSI real image2710
Same model may have multiple batches, images only for reference.

BSC014N04LSI

Part No BSC014N04LSI
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 100A TDSON-8
Datasheet
BSC014N04LSI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 31A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2V @ 250μA
Max Gate Charge 55nC @ 10V
Max Input Capacitance 4000pF @ 20V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.5W (Ta), 96W (Tc)
Maximum Rds On at Id,Vgs 1.45 mOhm @ 50A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-TDSON-8 FL
Dimension 8-PowerTDFN
Win Source Part Number 091543-BSC014N04LSI
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BSC014N04LSI CAD Model

Description

Product Overview

The BSC014N04LSI is designed to offer superior control in electronic applications, providing users with enhanced precision and responsiveness. This MOSFET is optimized for low on-state resistance.

Applications

  • Automotive Electronics
  • Communication Equipment
  • Lighting Systems

Features and Benefits

  • Low On-State Resistance: Enhances efficiency and reduces energy consumption.
  • Fast Response Time: Suitable for applications needing rapid signal processing.
  • Compact Package: Facilitates easy integration into existing designs.

Additional Details

Engineers appreciate the BSC014N04LSI for its precise control capabilities, reducing energy waste and improving overall system performance.
