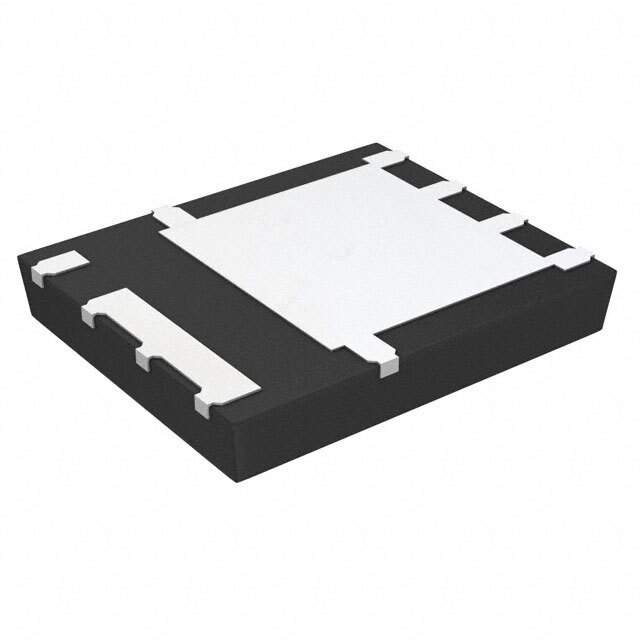

BSC014N04LSIATMA1

Part No BSC014N04LSIATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 100A TDSON-8
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 31A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2V @ 250μA
Max Gate Charge 55nC @ 10V
Max Input Capacitance 4000pF @ 20V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.5W (Ta), 96W (Tc)
Maximum Rds On at Id,Vgs 1.45 mOhm @ 50A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-TDSON-8 FL
Dimension 8-PowerTDFN
Win Source Part Number 109442-BSC014N04LSIATMA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BSC014N04LSIATMA1 CAD Model

Description

Product Overview

The BSC014N04LSIATMA1 is a high-performance MOSFET tailored for demanding applications that require stability and efficiency. This component is built to withstand variable environmental conditions while maintaining optimal functionality.

Applications

  • Consumer Electronics
  • Uninterruptible Power Supplies (UPS)
  • Robotics

Features and Benefits

  • High Thermal Conductivity: Minimizes heat accumulation to prolong component lifespan.
  • Energy Efficiency: Reduces operational costs by minimizing energy loss.
  • Enhanced Stability: Offers consistent performance across a wide range of temperatures.

Additional Details

The BSC014N04LSIATMA1 is especially valuable in projects that require trustworthy components to ensure long-term success and functionality.
