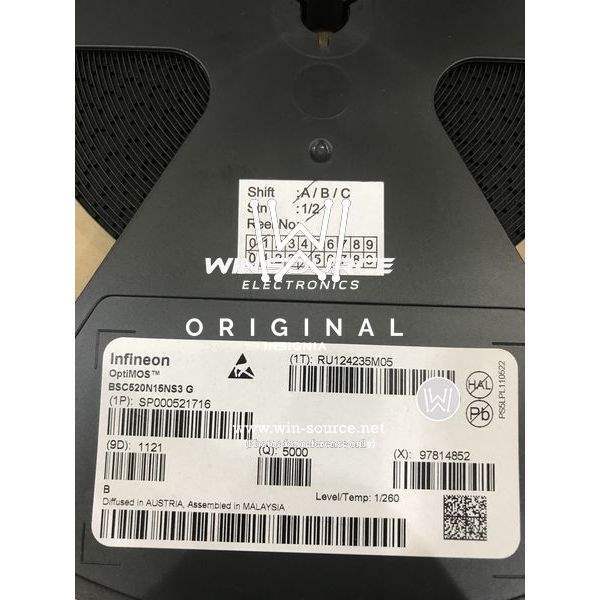

BSC520N15NS3GATMA1 Infineon Technologies BSC520N15NS3GATMA1 Real Image BSC520N15NS3GATMA1 Real Image BSC520N15NS3GATMA1 real image 2 BSC520N15NS3GATMA1 label picture BSC520N15NS3GATMA1 label picture 2
Same model may have multiple batches, images only for reference.
BSC520N15NS3GATMA1 Infineon Technologies BSC520N15NS3GATMA1 Real Image BSC520N15NS3GATMA1 Real Image BSC520N15NS3GATMA1 real image 2 BSC520N15NS3GATMA1 label picture BSC520N15NS3GATMA1 label picture 2
BSC520N15NS3GATMA1 Infineon Technologies BSC520N15NS3GATMA1 Real Image BSC520N15NS3GATMA1 Real Image BSC520N15NS3GATMA1 real image 2 BSC520N15NS3GATMA1 label picture BSC520N15NS3GATMA1 label picture 2
Same model may have multiple batches, images only for reference.

BSC520N15NS3GATMA1

Part No BSC520N15NS3GATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 150V 21A TDSON-8
Datasheet
BSC520N15NS3GATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 150V
Continuous Drain Current at 25°C 21A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 8V, 10V
Gate-Source Threshold Voltage 4V @ 35μA
Max Gate Charge 12nC @ 10V
Max Input Capacitance 890pF @ 75V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 57W (Tc)
Maximum Rds On at Id,Vgs 52 mOhm @ 18A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-TDSON-8
Dimension 8-PowerTDFN
Win Source Part Number 111479-BSC520N15NS3GATMA1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BSC520N15NS3GATMA1 CAD Model

Description

Product Description

The BSC520N15NS3GATMA1 is a high-performance N-channel MOSFET engineered for exceptional power efficiency and reliability in demanding environments. It provides low on-resistance and is optimized for high-speed applications.

Features and Benefits

  • Remarkably low on-resistance for enhanced efficiency.
  • High-speed switching capabilities.
  • Excellent thermal performance for stable operations.

Applications

  • Inverter circuits
  • Renewable energy systems
  • Powertrain management
  • Robotic systems

Choose the BSC520N15NS3GATMA1 for reliable operation in sophisticated power applications where efficiency is crucial.
