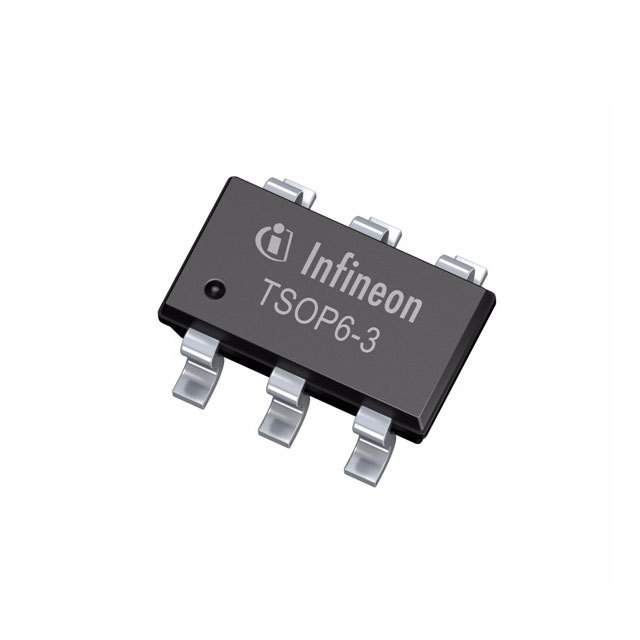

Same model may have multiple batches, images only for reference.
BSL316CH6327XTSA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

BSL316CH6327XTSA1

Part No BSL316CH6327XTSA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N/P-CH 30V 1.4A/1.5A TSOP
Datasheet
BSL316CH6327XTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
FET Type N and P-Channel Complementary
FET Feature Logic Level Gate, 4.5V Drive
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 1.4A, 1.5A
Maximum Rds On at Id,Vgs 160 mOhm @ 1.4A, 10V
Gate-Source Threshold Voltage 2V @ 3.7μA
Max Gate Charge 0.6nC @ 5V
Max Input Capacitance 282pF @ 15V
Maximum Power Dissipation 500mW
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-TSOP6-6
Win Source Part Number 1024398-BSL316CH6327XTSA1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BSL316CH6327XTSA1 CAD Model

Description

The BSL316CH6327XTSA1 from Infineon Technologies is an N and P-channel complementary FET with a logic level gate and 4.5V drive.

  • Type: N and P-channel complementary FET
  • Gate Type: Logic Level
  • Drive Voltage: 4.5V
  • Power Dissipation (Max): 500mW
  • Rds On (Max): 160 mOhm @ 1.4A, 10V
  • Package: PG-TSOP6-6
  • Mounting Technology: SMD (SMT)
  • Popularity: Medium
  • Supply and Demand Status: Limited
