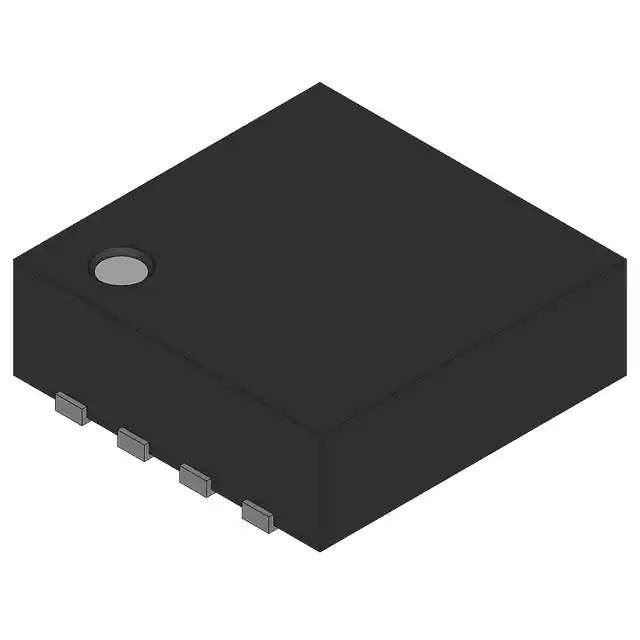

BSZ12DN20NS3G Real Image
Same model may have multiple batches, images only for reference.

BSZ12DN20NS3G

Part No BSZ12DN20NS3G
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description BSZ12DN20 - 12V-300V N-CHANNEL P
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Infineon Technologies
Series OptiMOS™ 3
Package Bulk
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 200 V
Current - Continuous Drain (Id) @ 25°C 11.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 125mOhm @ 5.7A, 10V
Vgs(th) (Max) @ Id 4V @ 25µA
Gate Charge (Qg) (Max) @ Vgs 8.7 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 680 pF @ 100 V
Power Dissipation (Max) 50W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-TSDSON-8
Package / Case 8-PowerTDFN
Standard Package 1 pcs
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 744923-BSZ12DN20NS3G
Ultra Librarian 3D Model Ultra Librarian BSZ12DN20NS3G CAD Model

Description

The 744923-BSZ12DN20NS3G is a single N-Channel MOSFET in the Transistors category.

  • Series: OptiMOS™ 3
  • Manufacturer: Infineon Technologies
  • Package: Bulk (1 piece)
  • Mounting Type: Surface Mountable
  • Drain-to-Source Voltage: 200V
  • Continuous Drain Current: 11.3A @ 25°C
  • On-Resistance: 125mΩ @ 5.7A and 10V gate-source voltage
  • Threshold Voltage: 4V @ 25μA
  • Power Dissipation: 50W @ 25°C
  • Gate Charge: 8.7nC @ 10V gate-source voltage
  • Input Capacitance: 680pF @ 100V drain-source voltage
  • Maximum Gate-Source Voltage: ±20V
  • Temperature Range: -55°C to 150°C
  • HTSUS Code: 8541.29.0095
  • Product Status: Active
